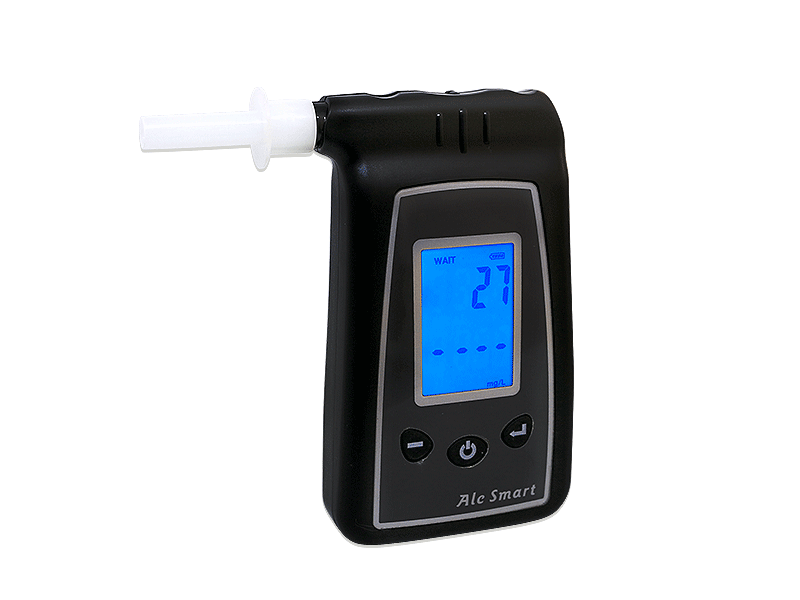

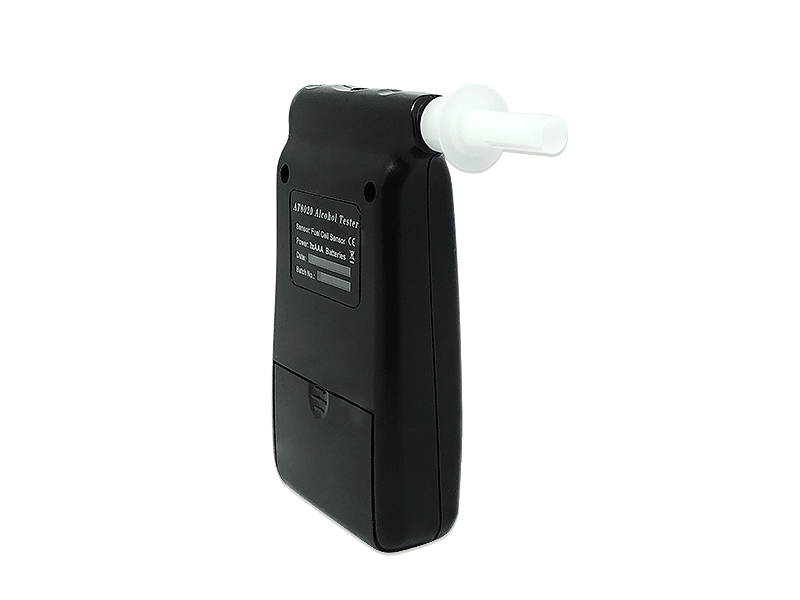

• AT8020 personal breathalyzer

AT8020 personal breathalyzer

  • Sensor type: Fuel cell alcohol sensor
  • Alarming level: 0.250 mg/L (could be modified)
  • Power: 2*AAA alkaline batteries
  • Dimension: 110*65*28mm
  • Weight: around 120g
  • Certificate: CE

We're here to help: Easy ways to get the answers you need.

Share With:
  • Overview
  • Technical Data
  • Inquiry
-Fuel cell sensor, good reliability and accuracy
-Passive and active test
-Measurement unit and alarming level adjustable function
-Testing records (maximum 10) review
-Anti-backflow mouthpiece for health and safety
Sensor type: Fuel cell alcohol sensor
Test Range: 0.000-2.000mg/l
(0.400%BAC; 4.000‰BAC; 4.000g/l)
Alarming level: 0.250 mg/L (could be modified)
Working Environment:
Temperature: 0-50℃ humidity: less than 95%RH  no dews
Power: 2*AAA alkaline batteries
Dimension: 110*65*28mm
Weight: around 120g
Accuracy:
<0.400         ±0.050 mg/L
0.400 - 1.000 mg/L    ±20%
1.000 - 2.000 mg/L   ±30%
Certificate: CE
