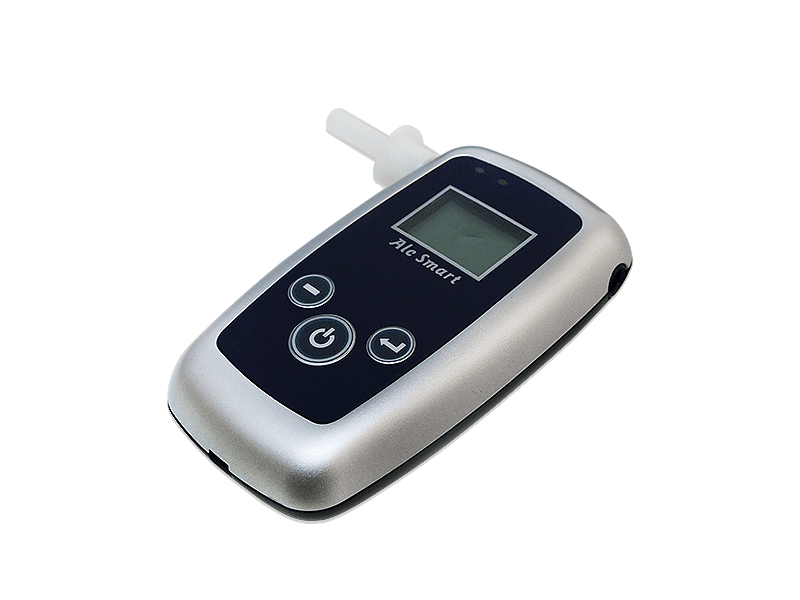

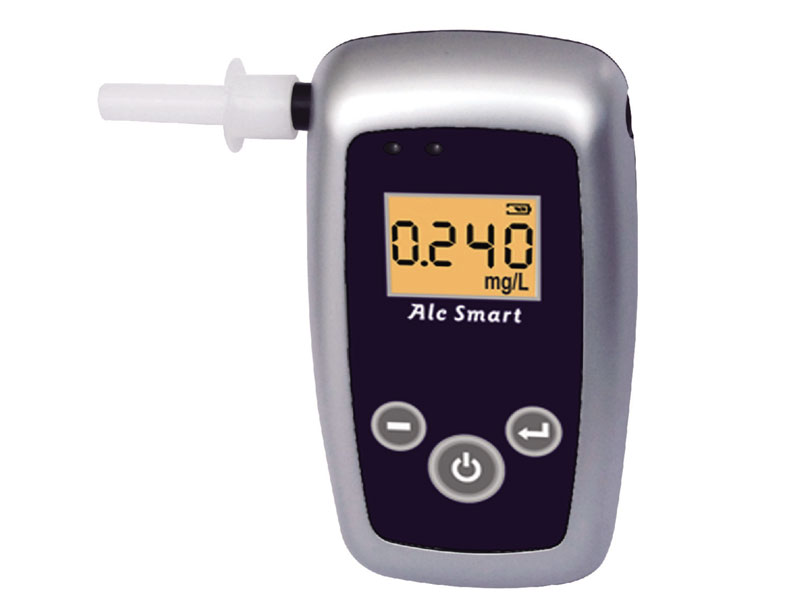

• AT8060 personal breathalyzer

AT8060 personal breathalyzer

  • Sensor Type: Fuel-cell alcohol sensor
  • Alarm Level: 0.250 mg/L (could be modified)
  • Temperature: 0-50℃
  • Power: 2*AA NiMH battery
  • Dimension: 122*68*30mm
  • Weight: about 100g

We're here to help: Easy ways to get the answers you need.

Share With:
  • Overview
  • Technical Data
  • Inquiry
Fuel cell sensor, good reliability and accuracy
Switchable measurement units and alarming level
Testing records (maximum 10) review
Anti-backflow mouthpiece for health and safety

Sensor Type: Fuel cell alcohol sensor
Test Range: 0.000-2.000mg/l
(0.400%BAC; 4.000‰BAC; 4.000g/l)
Alarm Level: 0.250 mg/L (could be modified)
Working Environment:
Temperature: 0-50℃ humidity: ≤95%RH  no dews
Power: 2*AA NiMH battery
Dimension: 122*68*30mm
Weight: about 100g
Accuracy:
<0.400                       ±0.050 mg/L
0.400 - 1.000 mg/L   ±20%
1.000 - 2.000 mg/L   ±30%
Certificate: CE & RoHS
