  • HWP-02 portable wireless printer
  • HWP-02 wireless printer for alcohol tester

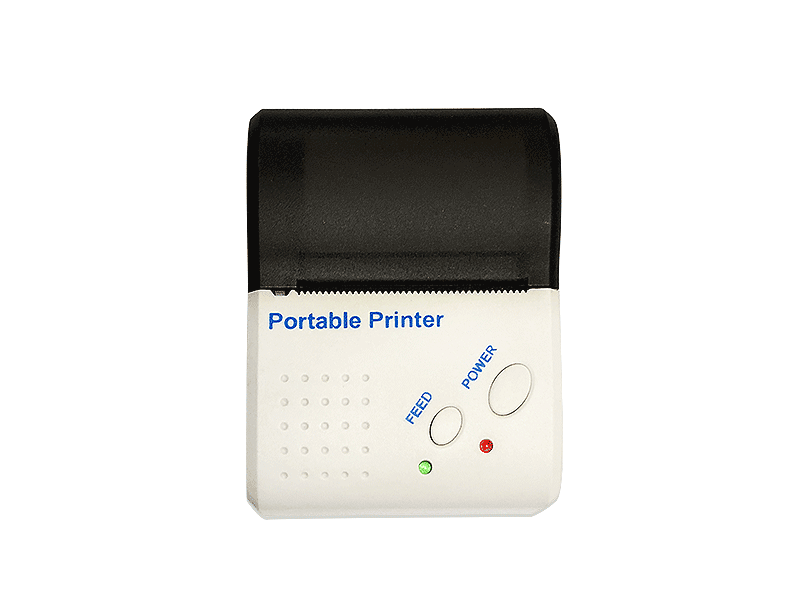

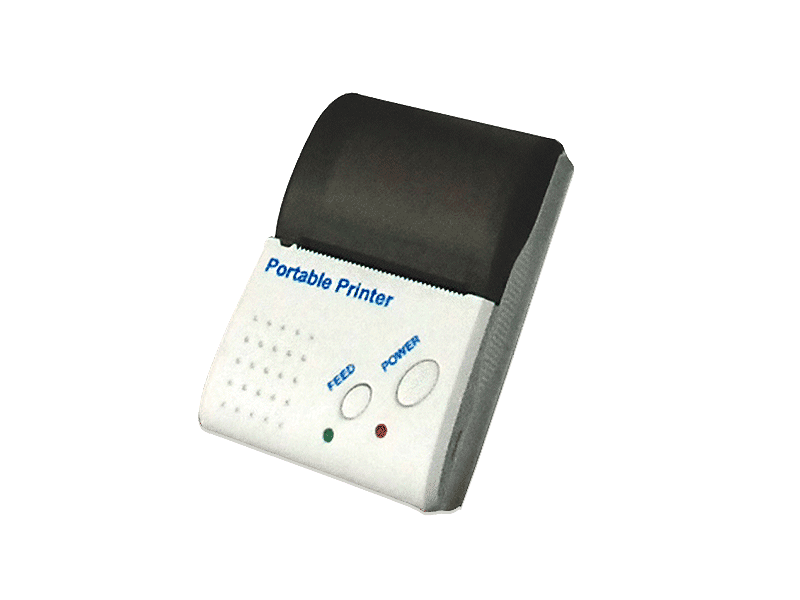

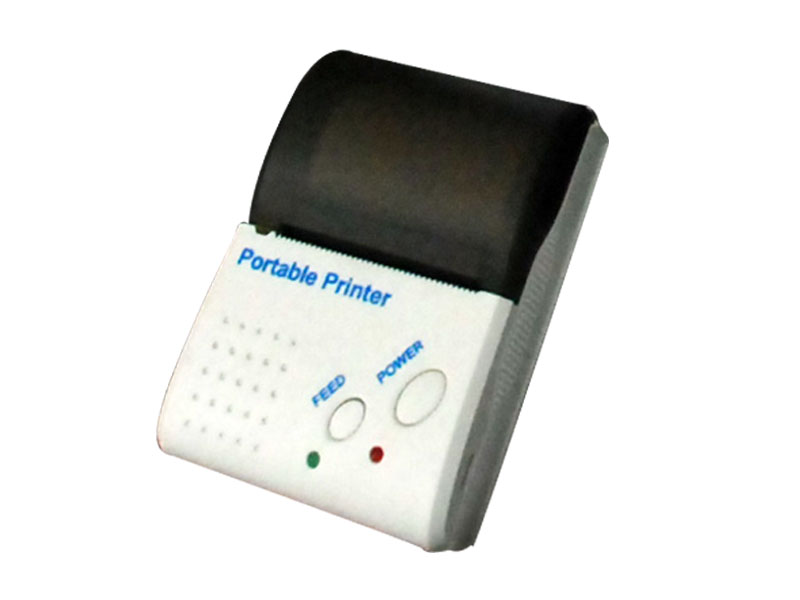

HWP-02 Wireless Printer

  • Print Principal: Thermal Type
  • Print Paper Width: 58mm
  • Valid Print Width: 40mm（30 ASCII characters or 15 Chinese characters）
  • Outline Dimension: 108×79×47mm (l×b×h)
  • Weight: 199g
  • Paper Roll Diameter: 40mm

We're here to help: Easy ways to get the answers you need.

Share With:
  • Overview
  • Technical Data
  • Inquiry
This product specializes in the printing that applied to the alcohol tester.

2.1 Print Performance
Print Principal: Thermal Type
Print Paper Width：58mm
Valid Print Width：40mm（30 ASCII characters or 15 Chinese characters）
Printable Range：24 × 36 bold characters and 16×24ASCII characters is available.
2.2 Physical Parameter
Outline Dimension: 108×79×47mm (l×b×h)
Weight：199g
Paper Roll Diameter：40mm
Interface Method：Bluetooth
2.3 Environment Parameter
Operation Temperature：－5℃～50℃
Working Humidity：20％RH～85％RH
Storage Temperature：－20℃～75℃
Storage Humidity : 5％RH～85％RH
2.4 Other Features
Paper Loading Mode：clamshell mode（please refer to 4.1.2 for more details）
Power Supply Mode：1500mA 7.4V high capability lithium battery
Paper Out Check：when paper is used up, the status indicator light will twinkle, when paper is finished loading, the indicator light will be off.
Low Power Alarm：when the power light twinkles fast, it indicates that it’s time to charge up.
Automatic Dormancy：if the printer doesn’t receive the printing data or signals within 10min, it will turn into dormancy mode automatically.
