• AT198 pocket size breathalyzer

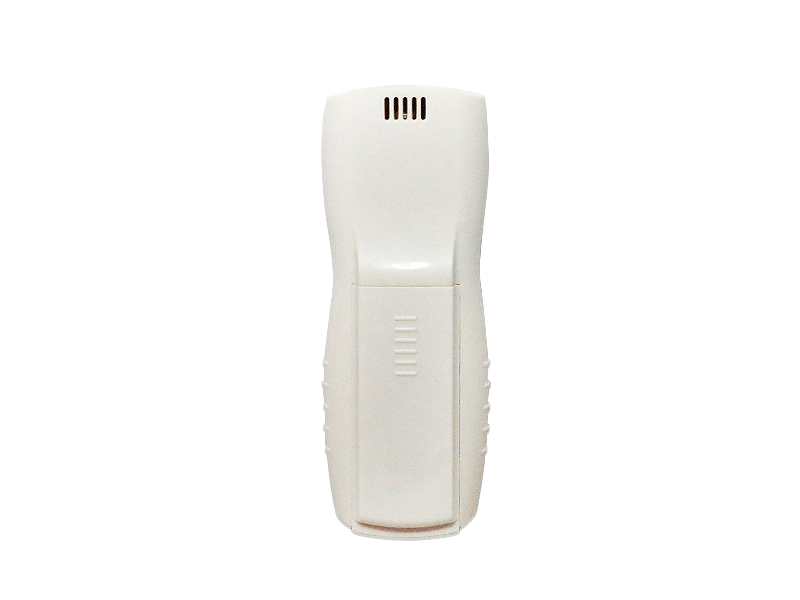

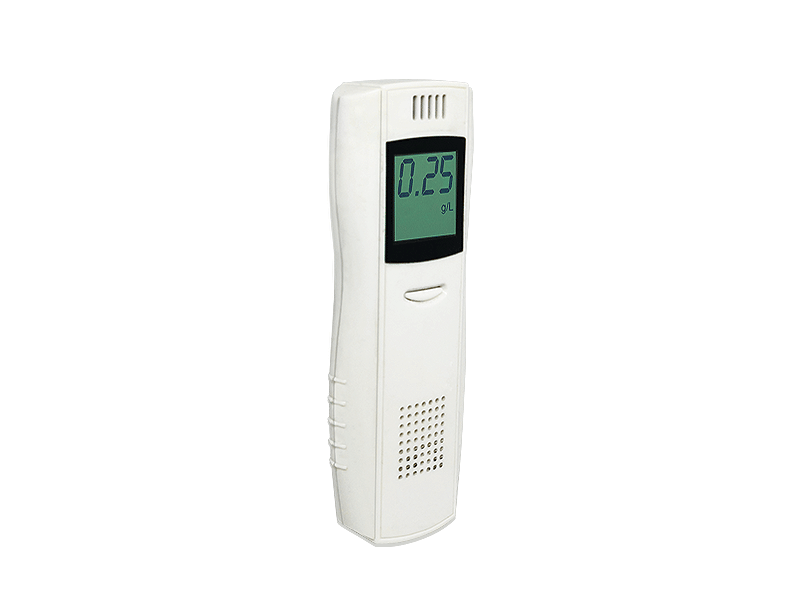

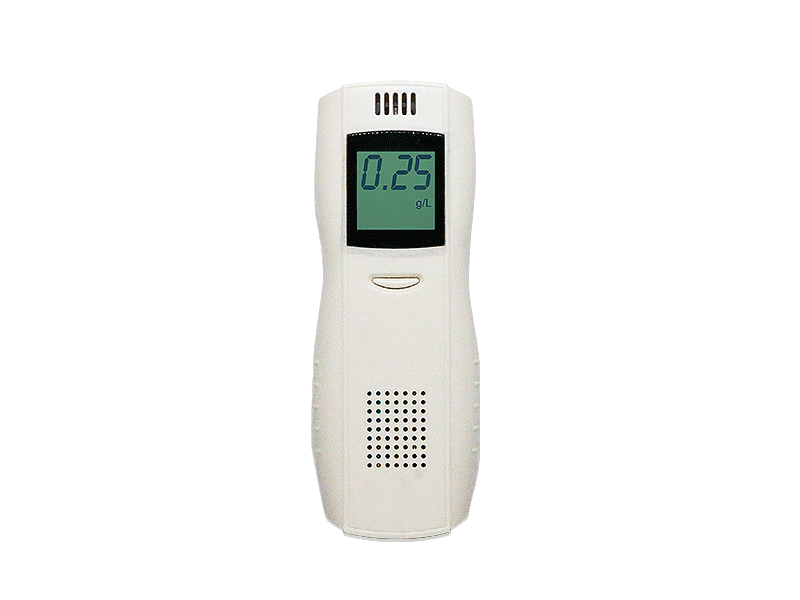

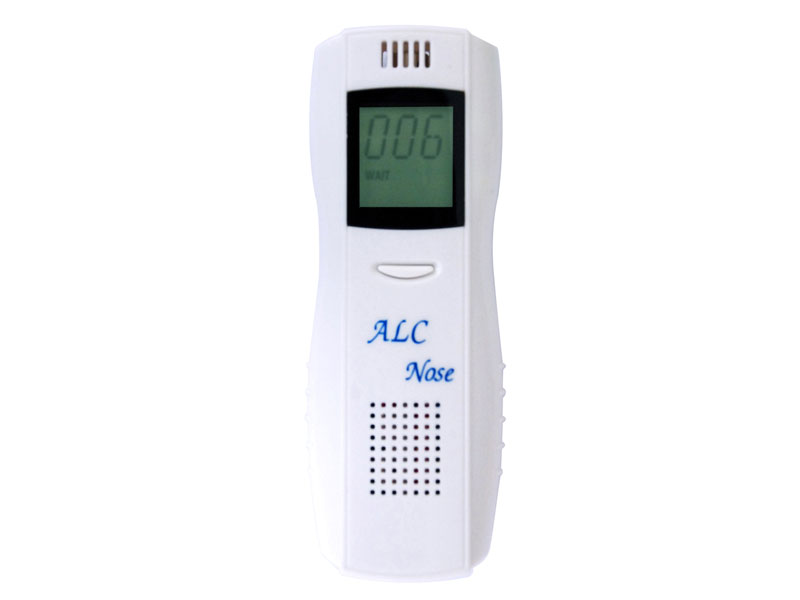

AT198 pocket size breathalyzer

  • Sensor: Advanced semiconductor(flat surfaced)sensor
  • Alarming Level: 0.25mg/L; 0.50g/L; 0.05%BAC; 0.5‰BAC
  • Power: 2*AAA alkaline battery
  • Warm-up Time: <18 s
  • Response Time: <8 s
  • Dimension: 102X37X20mm

We're here to help: Easy ways to get the answers you need.

Share With:
  • Overview
  • Technical Data
  • Inquiry
Advanced semiconductor(flat-surfaced) alcohol sensor
Quick response, good accuracy
SMD assembling, MCU control, stable performance
Cartoon and LCD Indication, back-up light
Healthy design without mouth touch
Sensor fault self-checking
Battery saved design, low voltage warning

Sensor : Semiconductor alcohol sensor
Range of measurement: 0.00-1.00mg/L ;  0.00-2.00g/L
                         0.00-0.20%BAC; 0.00-2.0‰BAC
Alarming Level: 0.25mg/L; 0.50g/L; 0.05%BAC; 0.5‰BAC
Accuracy: +/-0.02%BAC at 0.05%BAC
Battery: 2*AAA alkaline battery
Working Temperature: 0℃ - 50℃
Relative Humidity: ≤93%RH No dews
Warm-up Time: <18 s
Response Time: <8 s
Display: 3 digitals LCD with cartoon indication
Dimension: 102X37X20mm
Weight: Less than 45g(excluding battery)
Certificate: CE

Inquiry >>
