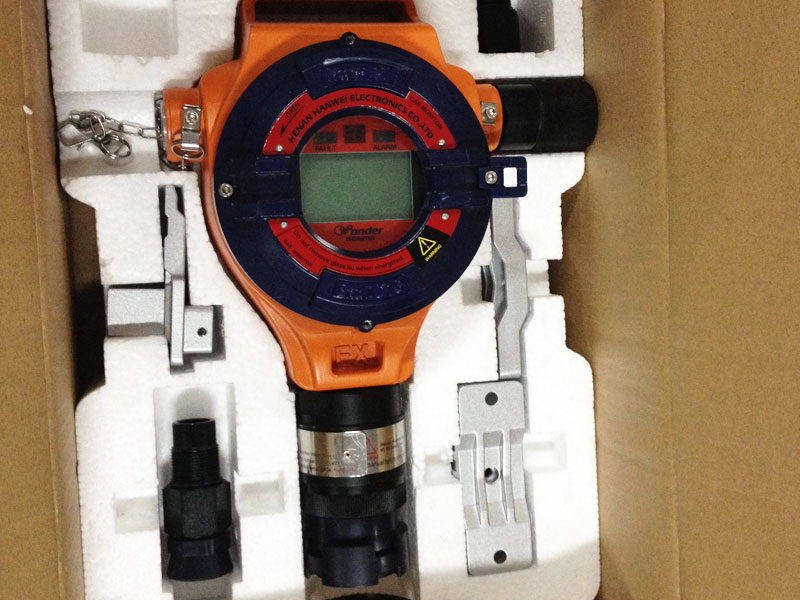

WD6200 Fixed Gas Monitor

  • Sensor Type: Catalytic or electrochemical or infrared
  • Sampling Method: Natural diffusion
  • Working Voltage: DC24V±6V
  • Accuracy: ≤±5%FS
  • Indication: LCM screen
  • Protection Grade: IP65

We're here to help: Easy ways to get the answers you need.

Share With:
  • Overview
  • Technical Data
  • Inquiry
Description:
WD6200, adopting high quality gas sensor and MCU technology, has good repeatability and stability. It is widely used in the fields of oil processing plants, chemical factories, metallurgy, power plants etc.
Applications:
It is widely used in the fields of oil processing plants, chemical factories, metallurgy, power plants etc.
Features:
explosion-proof design
smart sensor module
sil2 certificate
LCM screen display
Sensor Type: Catalytic or electrochemical or infrared
Sampling Method: Natural diffusion
Working Voltage: DC 24V±6V
Consumption: ≤5W
Accuracy: ≤±5%FS
Indication: LCM screen
Status indication: Yellow LED: Fault Red LED: gas leak alarm
Response time (t90): ≤30s (LEL)/ ≤60s (Toxic gas / O2)
Temperature: -40℃~70℃ (LEL) / -20℃~50℃ (toxic gas / O2)
Humidity: ≤95%RH
Explosion-proof: ExdⅡCT6
Ingress protection: IP65
Environment pressure: 86kPa~106kPa
Signal output: 4-20mA analog output
Relay output
Screw thread: G3/4” or G1/2”
Cable required:
≥1.5mm2 × 3 core cable (4-20mA type)
≥1.5mm2 × 4 core cable (RS485 type)
Distance to the panel: ≤1000m
Sensor life:
Catalytic 3 years; Electrochemical: 2 years; Infrared: ≥ 5 years
Dimensions and weight: 293 mm×263mm×108mm about 2.7kg
Package and Accessories:
pcs per carton, size: 40*28*16cm
