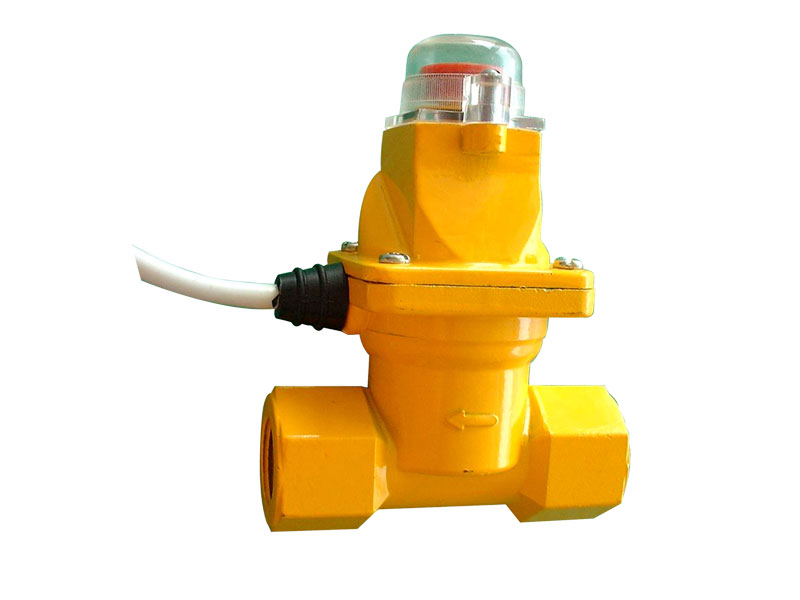

• DCF-80 electromagnetic valve

DCF-80 electromagnetic valve

  • Rated Voltage For Valve Close: DC6~24V
  • Quiescent Working Current: <1.5A(Pulse)
  • Diameter: G1/2(DN15)-G1(DN25)
  • Response Time: <0.3 sec
  • Operating Pressure: 0.5—200kpa
  • Atmosphere Pressure: 86~106kpa

We're here to help: Easy ways to get the answers you need.

Share With:
  • Overview
  • Technical Data
  • Inquiry
Description:
DCF-80 electromagnetic valve can be used together with a gas leakage alarm to form a security system. When the gas concentration in the air reaches the alarming level, the gas alarm gives audible & visual alarming, and drives simultaneously the valve to shut off the gas supply so as to avoid continuous gas leakage, combustion and explosion..
Applications:
DCF-80 electromagnetic valve is used to shut off the gas supply when there is a gas leakage in your home.
Features:
Well airproofed
Low power consumption
High sensitivity
Reliable performance
Small size and easy handle
Rated Voltage For Valve Close: DC6~24V
Quiescent Working Current: <1.5A(Pulse)
Resistance Of Loop In Valve-Closed: 4.5Ω±0.5Ω Output: N.O
Diameter: G1/2(DN15)-G1(DN25)
Response Time: <0.3 sec
Operating Pressure: 0.5—200kpa
Operating Temperature: -15℃~50℃
Relative Humidity: ≤93%
Atmosphere Pressure: 86~106kpa
Diameter: G1/2”, G3/4”, G1”
