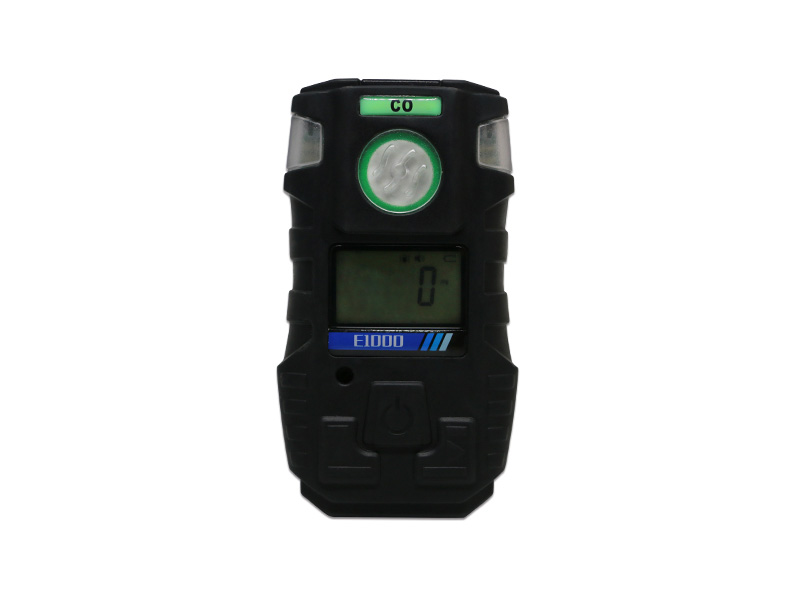

E1000 Portable Single Gas Detector

  • Gas Detected: combustible gas, toxic gas, oxygen
  • Alarm Method: Visual, Audible, Vibration alarm
  • Working Temperature: -40℃~70℃
  • Working Humidity: ≤95%RH no condensation
  • Charging Time: 4~6 hours
  • Protection Grade: IP66

We're here to help: Easy ways to get the answers you need.

Share With:
  • Overview
  • Technical Data
  • Inquiry
Description:
E1000 portable single gas detector (hereinafter refer to as “detector”) is an intrinsically safe instrument which can make continuous detection to combustible and toxic gases.
Applications:
It is suitable for combustible and toxic gas leakage detection in underground pipe or mines, and keeps the workers safe, prevents the facilities from being destroyed.
Features:
-Intrinsically safe
-Smart interchangeable sensor module
-Calibration point adjustable
-Two alarm level
-Visual /audible / vibration alarm
-STEL&TWA alarm for toxic gases
-Self protection against High concentrationcombustible gas
-Low battery alert
-Data uploading
-Password management
-Self-test when power on
-Self-diagnostic and self correction function
-GPS,GPRS and Man-down dunction optional

Gas Detected: combustible gas, toxic gas, oxygen
Response Time:
Semiconductor, Catalytic, Thermal conductivity t90<30s
Oxygen, Carbon monoxide, hydrogen sulfide t90<30s
Indication Method:
LCD displays the real time data and status;
Alarm Method:Visual, audible, vibration alarm
Working Temperature:
Cumbustile Gas: -40℃~70℃
Toxic Gas -20℃~50℃
Working Humidity:≤95%RH no condensation
Power Source: DC3.7V (Lithium battery 1800mAh LIS103450)
Charging Time: 4~6 hours
Continuous working time:
≥8 hours (for combustible gas)
≥300 hours (for toxic gas under temperature of 20℃ )
Protection Grade: IP66
Weight: about 191g (with battery)
Dimensions: 108.4mm×61mm×36mm (L × W × H)
