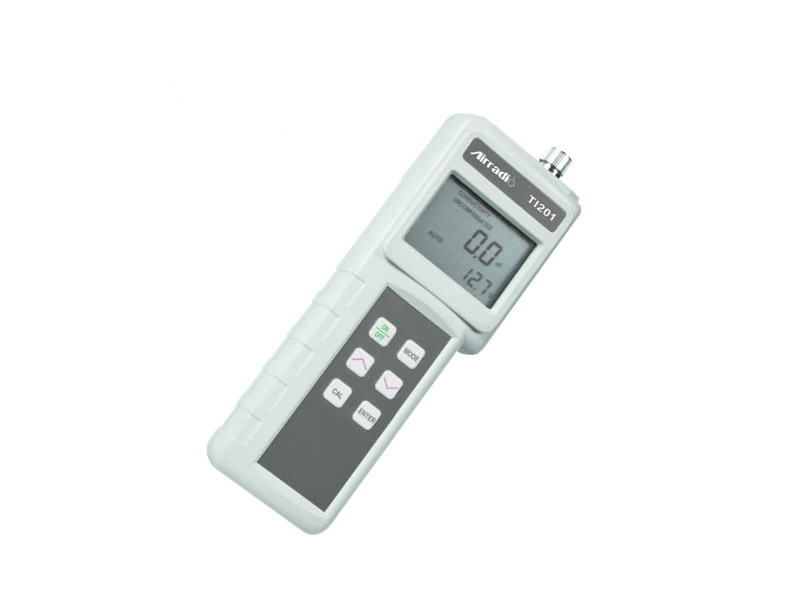

  • WG-TI201 EC/TDS/Salinity/Temp Portable Meter

Portable EC/TDS/Salinity/Temp Water Quality Tester

  • Reference Temperature: From 15.0 to 25.0℃, default is 25.0℃
  • Temperature Coefficient: From 0.00 to 4.00%, default is 1.91%
  • TDS Constant: From 0.30 to 1.00, default is 0.65
  • ATC: Thermistor, 10K ohms, at 25℃
  • Power: 9Volt battery
  • Operating Ambient Conditions: From 0~50℃, at 90% RH

We're here to help: Easy ways to get the answers you need.

Share With:
  • Overview
  • Technical Data
  • Inquiry
Features:
Simultaneous displays of conductivity, salinity or TDS with temperature measurements
50 data set reviewable memory
Convenient one point calibration. Calibration data is stored in memory andready for use on power up
Adjustable TDS coefficient, reference temperature and temperature coefficient
Uses one conductivity cell for conductivity, salinity and TDS measurements
Accepts 4-wire conductivity cell with K=0.475 cell constant and 2-wire K=0.1
cell constants for improved flexibility and accuracy
Automatic shutoff function (30 minutes of non-use)
Battery life over 1000 hours
IP65 waterproof
Low battery indicator
RoHS and CE compliant
Accessories:
3020P  Epoxy, 4-wire K=0.475 (50uS~200mS/cm) conductivity cell, platinum plated, 10K ohms thermistor, 6 pin connector and 1m cable
109P  Glass, 2-wire K=0.1 (0.0~200.0uS/cm) conductivity cell w/ platinum plate, 10K ohms thermistor, 6 pin connector and 1m cable
Carry case  Hard carrying case
Range:
Conductivity: 0.00~99.99uS/cm; 100.0~200.0uS/cm or 0.0~499.9uS/cm;500~4999uS/cm; 5.00~49.99mS/cm; 50.0~200.0mS/cm
Salinity: 0.0~ 70.0ppt
Temperature: -10.0~90.0℃
Resolution: Conductivity: 0.01uS/cm; 0.1uS/cm; 1uS/cm; 0.01mS/cm; 0.1mS/cm, Salinity: 0.1ppt, Temperature: 0.1℃
Accuracy: Conductivity: ±0.5%FS, Salinity: ±0.5%FS, Temperature: ±0.2℃ or ±0.4% FS, whichever is greater
Reference Temperature: From 15.0 to 25.0℃, default is 25.0℃
Temperature Coefficient: From 0.00 to 4.00%, default is 1.91%
TDS Constant: From 0.30 to 1.00, default is 0.65
Electrode Type / Cell Constant: 4 wire conductivity cell: K= 0.475 and 2 wire conductivity cell: K=0.1
ATC: Thermistor, 10K ohms, at 25℃
Power: 9Volt battery
Operating Ambient Conditions: From 0~50℃, at 90% RH
Weight / Dimensions (W x D x H): 260 grams (Including batteries) / 70mm x 186mm x 37mm
