  • AT6100 portable personal breathalyzer

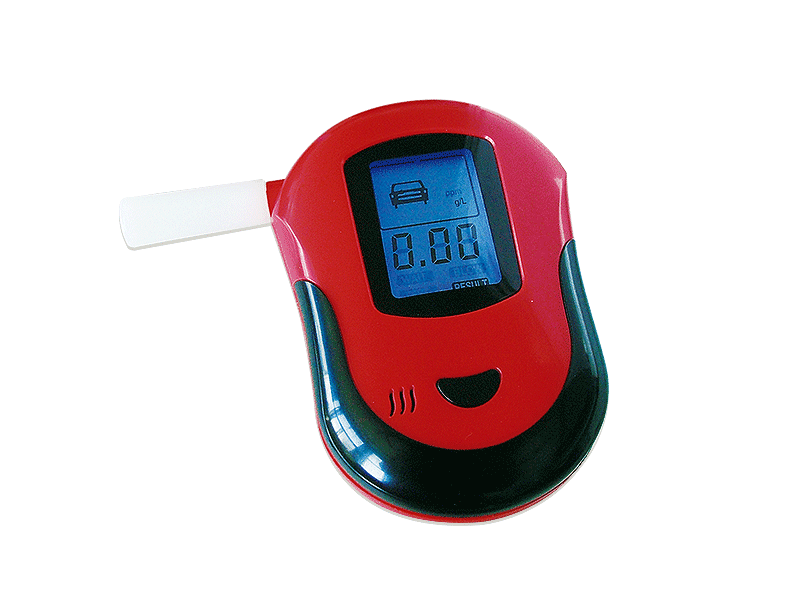

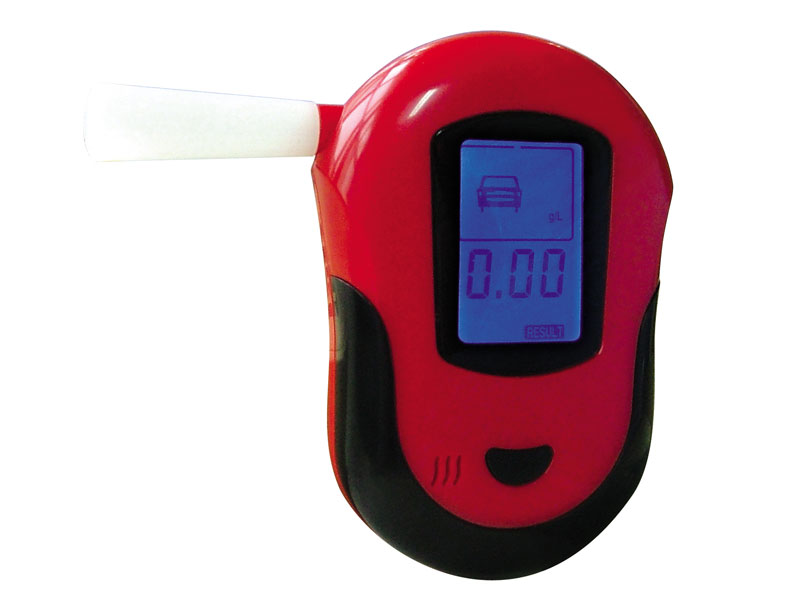

AT6100 Personal Breathalyzer

  • Sensor Type: Flat surfaced alcohol sensor
  • Power: 3*AAA alkaline battery
  • Working Current: ≤120mA
  • Working Environment: 0℃-50℃
  • Response Time: ＜5s
  • Dimension: 100X70X28mm

We're here to help: Easy ways to get the answers you need.

Share With:
  • Overview
  • Technical Data
  • Inquiry
Advanced flat surfaced alcohol sensor
Energy saving & Environment friendly
Quick response and resume
SMD assembling, smart MCU control, stable performance
Digital LCD display with blue backup light
Audio warning beyond pre-set limit
Sensor fault self checking
Battery saved design, low voltage indication
Sensor Type: Flat surfaced alcohol sensor
Power: 3*AAA alkaline battery
Working Current: ≤120mA
Working Environment: 0℃-50℃
Relative Humidity: ≤95% no dews
Detection Range: 0.00-1.00mg/L ,0.00-0.20%BAC; 0.00-2.00g/L; 0.00-2.00‰BAC
Alarming Level: 0.25mg/L (0.05%BAC, 0.50g/L; 0.50‰BAC)
Accuracy: ±0.02%BAC at 0.05%BAC
Response Time: ＜5s
Resume Time: ≤ 20s
Display: 3 digits LCD display with blue backup light
Dimension: 100X70X28mm
Weight: about 64g
Certificate: CE & RoHS
