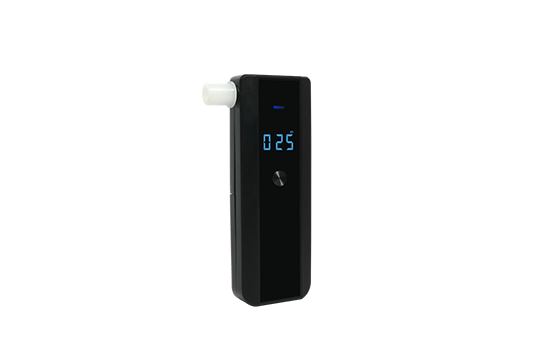

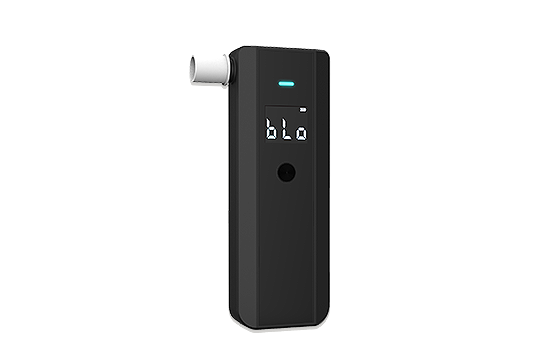

AT188 Consumer Breath Alcohol Tester

AT188 Consumer Breath Alcohol Tester

Advanced semiconductor(flat-surfaced) alcohol sensor

Quick response, good accuracy

Sensor fault self-checking

Switchable result units(mg/l, g/l, %BAC, ‰BAC)

Display: 1.0-inch LCD

Warm-up time: 20 seconds counting down

Download

Description

AT188 consumer breath alcohol tester is a smart and portable alcohol screener. It has good sensitivity and repeatability. Its compact design and small size are very convenient for your portable use and carry.

Features

Advanced semiconductor(flat-surfaced) alcohol sensor

Quick response, good accuracy

SMD assembling, MCU control, stable performance

Sensor fault self-checking

Power saving design, low voltage warning

Audio warning beyond pre-set limit

Switchable result units(mg/l, g/l, %BAC, ‰BAC)

Application

People who want to test the content of alcohol in their breath.

Specifications

Sensor type Flat-surfaced Seminconductor Sensor
Detection range 0.00 - 0.20%BAC, 0.00-2.00‰BAC
0.00 - 1.00mg/L; 0.00 - 2.00g/L
Accuracy 0.01%BAC at 0.05%BAC
Pre-set level 0.05%BAC; 0.50‰BAC; 0.25mg/L; 0.50g/L
Warm-up time 20 seconds counting down
Testing time < 8 Sec
Display 1.0-inch LCD
Power 2×AAA batteries
Working environment 0℃ - 50℃, ≤95% RH, No dews
Working time >200 blowing times (full charge)
Dimensions 123mm X 44mm X 19mm @50g
Unit Switchable %BAC, ‰BAC, mg/L, g/L
