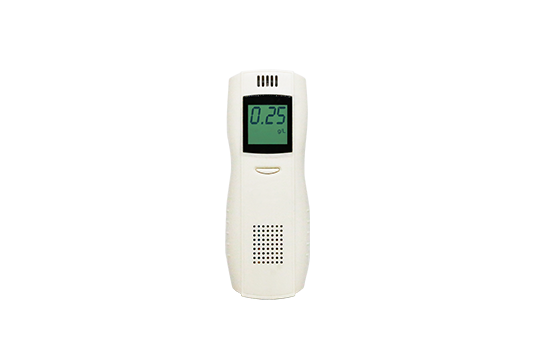

AT198 Consumer Alcohol Tester

AT198 Consumer Alcohol Tester

Advanced semiconductor(flat-surfaced) alcohol sensor

Quick response, good accuracy

Power saving design, low voltage warning

Accuracy: ±0.02%BAC at 0.05%BAC

Warm-up time: 35 seconds counting down

Testing time: < 8 Sec

Download

Description

AT198 alcohol tester is a smart and portable alcohol screener which gives an indication of presence of breath alcohol concentration.

Features

Advanced semiconductor(flat-surfaced) alcohol sensor

Quick response, good accuracy

SMD assembling, MCU control, stable performance

Healthy design without mouth touch

Sensor fault self-checking

Power saving design, low voltage warning

Audio warning beyond pre-set limit

Application

People who want to test the content of alcohol in their breath.

Specifications

Sensor type Flat-surfaced Seminconductor Sensor
Detection range 0.00 - 0.20%BAC, 0.00-2.00‰BAC
0.00 - 1.00mg/L; 0.00 - 2.00g/L
Accuracy ±0.02%BAC at 0.05%BAC
Pre-set level 0.05%BAC; 0.50‰BAC; 0.25mg/L; 0.50g/L
Warm-up time 35 seconds counting down
Testing time < 8 Sec
Display 0.96-inch LCD
Power 2×AAA batteries
Working environment 0℃ - 50℃, ≤95% RH, No dews
Working time >200 blowing times (full charge)
Dimensions 102mm X 37mm X 20mm @50g
