DZ512 Personal Alcohol Tester

Advanced semiconductor(flat-surfaced) alcohol sensor

SMD assembling, MCU control, stable performance

Sensor fault self-checking

Rechargeable battery

Accuracy: ± 0.05mg/l at 0.25mg/l /±0.02ºC at 0.05ºC

Download

Description

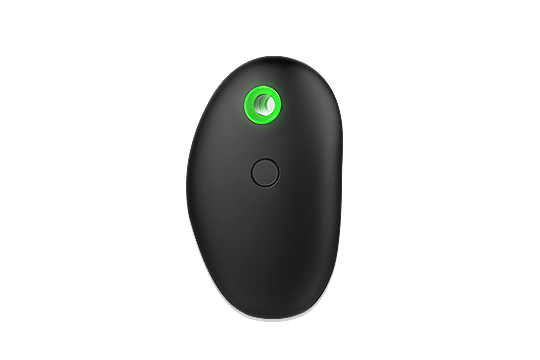

DZ512 Alcohol tester is a smart and portable alcohol tester. With cobblestone shape and smooth lines, DZ512 has a very unique shape. It has good sensitivity and repeatability. Its compact design and small size are very convenient for your portable use and carry.

Features

Advanced semiconductor(flat-surfaced) alcohol sensor

Quick response, good accuracy

SMD assembling, MCU control, stable performance

Sensor fault self-checking

Rechargeable battery

Audio warning beyond pre-set limit

Application

Home use, car, workshop.

Specifications

Sensor type Flat-surfaced sensor
Detection range 0.00 - 0.20ºC, 0.00-2.00‰BAC
0.00 - 1.00mg/L; 0.00 - 2.00g/L
Accuracy ± 0.05mg/l at 0.25mg/l /±0.02ºC at 0.05ºC
Pre-set level 0.05ºC; 0.50‰BAC; 0.25mg/L; 0.50g/L
Warm-up time 30 seconds counting down
Testing time < 8 Sec
Display White digital tube
Power 3.7V/600mAh lithium
Working environment 0℃ - 50℃, ≤95% RH, No dews
Working time >200 blowing times (full charge)
Dimensions 100mm×62.5mm×25mm @63g
Unit ºC, ‰BAC, mg/L, g/L are optional
