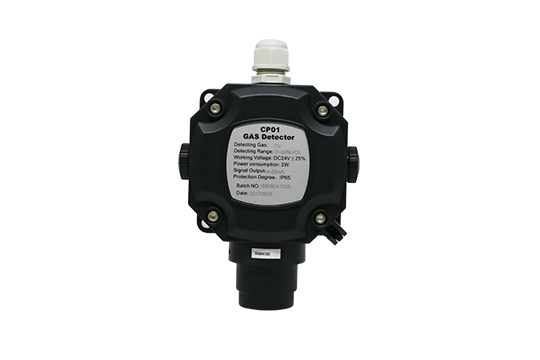

CP01 Fixed Gas Detector

CP01 Fixed Gas Detector

Water and dust proof

2 relay output for 4-20mA type

Economical type with stable performance

Small size, easy to install

Measuring gas: O2, CO, H2S or Combustible

Approval: CE

Download

Description

CP01 is a fixed gas detector installed in a place where potential gas hazard exists to measure oxygen, toxic gas and combustible gas. It is suitable for non-explosive environment use. It communicates with the control panel through 4-20mA analog output or RS485 digital signal.

Features

Water and dust proof

2 relay output for 4-20mA type

Economical type with stable performance

Small size, easy to install

Application

Hospitals, restaurants, hotels, car parks, refrigeration industry or industrial areas where explosion protection is not required.

Specifications

Measuring gas O2 CO H2S Combustible
Measuring range 0-30%VOL 0-1000ppm 0-100ppm 0-100%LEL
Sensor type Electrochemical Electrochemical Electrochemical Catalytic
Resolution 0.1%VOL 1ppm 1ppm 1%LEL
Sensor life 1 year 2 years 2 years 2 years
Measuring type Diffuse naturally
Response time Toxic gas and O2: T90≤60s         Combustible: T90≤30s
Signal output 4-20mA / RS485
Alarm output signal 2 programmable relays for 4~20mA type
Cable / distance 4-20mA type: 1.5 MM2, 3 wire, shielded,1000m (maximum)
RS485 type: 1.5 MM2, 4 wire, shielded, 1000m (maximum)
Mounting type Wall mounted
Working temperature Toxic gas: -20℃~+50℃     Combustible: -40℃~+70℃
Working humidity    <95%RH (no condensation)
Operation voltage DC24V±25%
Consumption <2W
Ingress Protection IP66
Housing material Plastics
Dimension and weight 165×118×62mm, about 0.5kg
Approval CE
