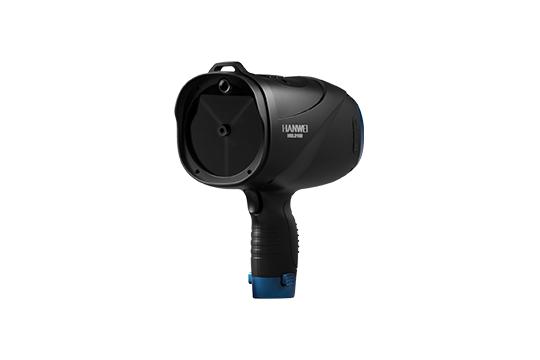

HRLD100 Handheld Laser Methane Detector

Advanced TDLAS technology

Detection distance maximum 80 meters

High selectivity, only response to methane

Measuring gas: Methane (CH4)

Response time: T90<0.1s

Display: Color LCD

Download

Description

This detector is specially designed, with advanced TDLAS technology, for fast and remote detection of underground pipelines, lofts, green belt, gas plant etc., giving fast response and high resolution.

Features

Advanced TDLAS technology

Detection distance maximum 80 meters

Visual and audible alarm

GPS location function, data transmitted to monitoring platform by GPRS

High selectivity, only response to methane

Fast response, no alarm delay

High sensitivity, no interference from vapor, car exhaust and other gases.

Application

Underground pipelines, lofts, green belt, gas plant.

Specifications

Measuring gas Methane (CH4)
Measuring range 0-50000ppm*m
Preset alarm level Low alarm: 20%LEL     High alarm: 50%LEL
Response time T90<0.1s
Sensor type TDLAS sensor
Sensor life 10 years
Measuring type Laser beam
Display Color LCD
Alarm type Visible, Audible, vibration
Audible 85dB @1m
Warning lamp LED light
Battery 3.7V 6600mAh
Working temperature -20℃~+50℃
Working humidity ≤99%RH (no condensation)
Case ABS+PC
Accessories Belt, Screen cover
Option Telescope sight
Working time 8 hours
Explosive-proof degree Ex ib IIB T4
Ingress Protection IP54
Dimension 25*25*11cm
Weight 1.3kg
