• portable 4 gas detector

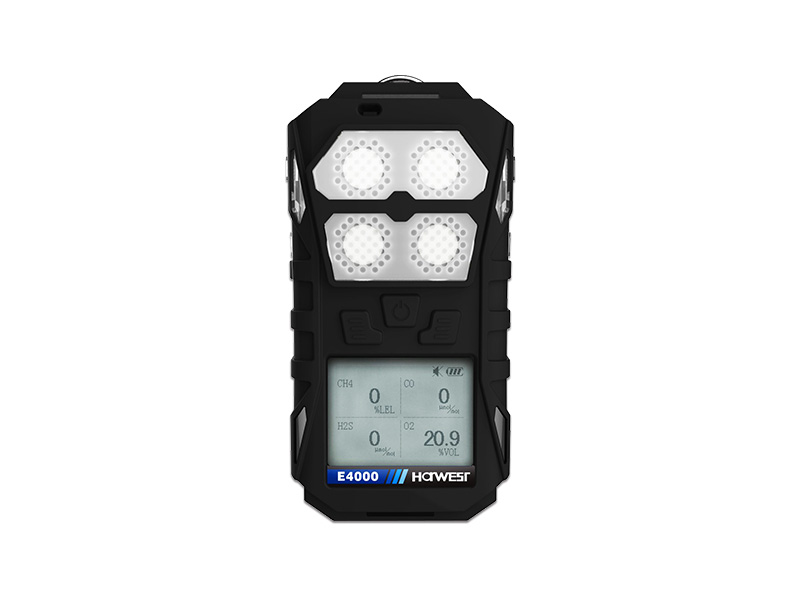

E4000 Portable Multi Gas Detector for 4 gas detection

  • Sampling Method: Natural diffusion or built-in pump
  • Working Temperature: -20℃~50℃ for toxic gas, -40℃~70℃ for combustible gas
  • Working Humidity: <95%RH(No dews)
  • Accuracy: ±5%FS
  • Response Time: T90<30s
  • Working Time: 8-300h depending on different configuration

We're here to help: Easy ways to get the answers you need.

Share With:
  • Overview
  • Technical Data
  • Inquiry

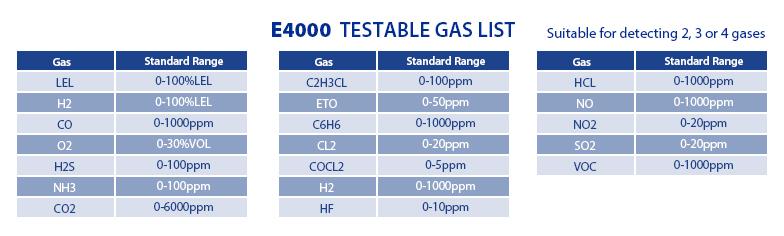

E4000 Testable gas list
E4000 portable multi gas detector testable gas list
E4000 Portable 4 Gas Detector is the new design of high quality portable multi gas detector which could detect 4 gases simultaneously, including toxic gases and combustible gases.
E4000 is applied to industrial manufacturing, underground mining and pipeline inspection.
Smart interchangable sensor module
MOS, Catalytic, Infrared, Electrochemical & PID sensors selectable
Built-in pump optional
100,000 detected records available including peak value
Calibration point adjustable
Two alarm level for each channel
STEL&TWA alarm for toxic gases
Visual/audible/vibrating alarm
Low battery alert
Data uploading
Password management
Self-diagnostic and self-correct function
Sampling method:natural diffusion or built-in pump sampling
Ingress protection:IP66
Response time:
Semi-conduct, catalytic, thermal conduct sensor ----------T90<30s
O2, CO, H2S sensor---------------------------------------------- T90<30s
Other sensors -----------------------------------------------------T90<120s
Indication error range:
Combustible gas----------------------------------------------------- ±5% F.S.
Toxic gas------------------------------------------------------------------±5ppm
Working Condition:
Temperature: -20℃~50℃ for toxic gas
-40℃~70℃ for combustible gas
Humidity: <95%RH
Power source: Lithium battery (DC3.6V, 6600mAh)
Working time per charging: ≤ 30 hours continuously (no alarm)
Charging time: ≤ 6 hours
Explosion –proof grade: ExiaIICT4
