The elastic pressure sensors are sensing systems designed to detect pressure/tactile input. The company has independently developed highly conductive elastic conductive fabrics, core sensitive materials, and a low-interference, rapid-response capacitive detection system to achieve high-precision pressure/tactile measurement. These pressure sensors can be integrated into clothing, home furnishings, sports equipment, and robots, enabling the visualization of pressure/tactile distribution. They are applied in fields such as sports health, medical health, and robotic tactile monitoring.

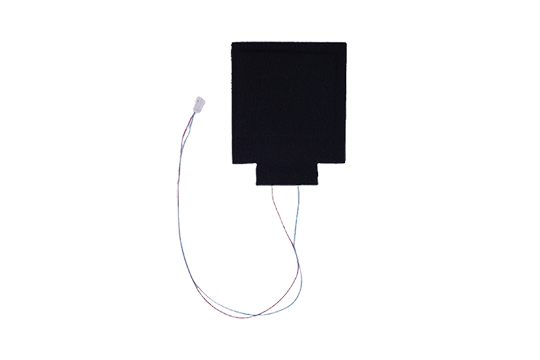

Elastic Pressure Sensor
Description
Features
Fully flexible, comfortable to wear, washable
Bendable, good deformation
High precision, high resolution
Large detection range
Application
Pressure footprint
Motion capture suits
Human-computer interaction
Flexible three-axis force
Specifications
| Product Model | Pressure Sensor ESPB-01 |
| Dimensions | 50*50mm |
| Thickness | 2.1mm |
| Sensitive Area | 38*38mm |
| Capacity | 1.5-800N |
| Sensitivity | 1.5N |
| Repeatability Error | ±15% |
| Durability | ≥10 million cycles (50N) |
| Initial Capacitance | >10pF |
| Response Time | ≤25ms |
| Refresh Rate | 50Hz |
| Test Voltage | Typical 3.3V |
| Operating Temperature | 10-45℃ |
| Consistency Error | ±15% |
