The A0050 is a compact high-precision MEMS inertial measurement unit, integrating three orthogonally mounted high-precision MEMS gyroscopes and three orthogonally mounted high-precision MEMS accelerometers. It features built-in full-temperature zero offset error compensation, installation orthogonal error compensation, non-linearity error compensation, and gravity value sensitivity error compensation, among various calibration algorithms. It uses a standard RS422 interface for data transmission. It can be widely applied in fields such as intelligent driving, platform stabilization, and flight attitude control.

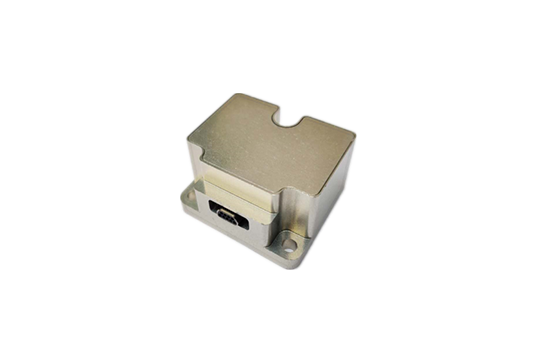

A0050 High Precision MEMS Inertial Measurement Unit
Description
Features
Built-in high-precision domestically produced independent intellectual property rights MEMS gyroscope and MEMS accelerometer
Power supply voltage: 5±0.5 V
Current of the whole machine: ≤250mA
Built-in multiple error compensation algorithms
The output baud rate and output rate can be set
Digital interface output: RS422
MEMS gyroscope range: ±450°/s
MEMS accelerometer range: ±5g, ±10g, ±30g optional
Operating temperature: -40 °C ~ +85 °C
Specifications and dimensions: 44.8mm × 38.6mm × 21.5mm
Application
Intelligent driving
Platform stability
Aircraft attitude control
Specifications
