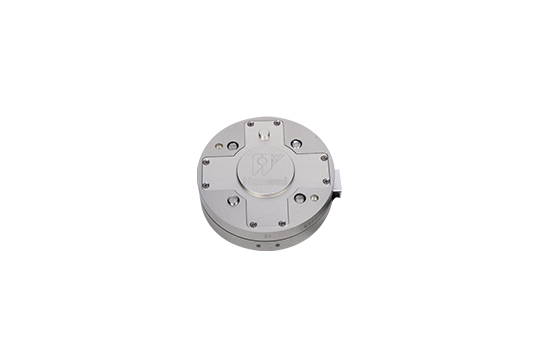

The six-axis force sensor is designed for measuring force and torque, primarily catering to the needs of collaborative robots and small industrial robots.
The X and Y axes are determined by the markings on the sensor surface.
The Z axis is along the central axis of the sensor.
The positive direction of the torque complies with the Right-Hand Screw Rule.
Easy installation and quick operation
Robots
Drag-and-drop teaching
Automated testing
Medical inspection
Safety protection
Automotive testing
3C inspection
Cutting and polishing
Aerospace
| Parameter | Specification |
| Force X, Y (Fx, Fy) (N) | 100 |
| Force Z (Fz) (N) | 100 |
| Torque X, Y (Mx, My) (Nm) | 5 |
| Torque Z (Mz) (Nm) | 5 |
| Diameter (mm) | 75 |
| Height (mm) | 30.5 |
| Resolution (%) | 0.1 FS |
| Repeatability (%) | 0.2 FS |
| Comprehensive Accuracy (%) | ≤1 FS |
| Zero Point Drift (%FS/10℃) | 0.3 |
| Overload Capacity (%) | 200 |
| Protection Level | IP64 |
| Operating Temperature (℃) | -20~80 |
| Sampling Frequency (Hz) | 1000 |
| Cable Length (m) | 0.25 (customizable) |
| Power Supply (VDC) | 12~24 |
| Communication Method | RS485/Industrial Ethernet, etc. |
| Weight including Cable (kg) | 0.2 |
| Material | Aluminum Alloy |
