The US5C-803L is a high accuracy miniature distance-measuring sensor module. This module employs a miniature ultra-low-power transducer chip with patented MEMS packaging technology, based on the principle of ultrasonic Time of Flight (TOF). It is complemented by relevant acoustic, electrical, and algorithmic designs. By utilizing the energy differences in ultrasonic echo signals, it achieves high accuracy distance measurement and outputs distance information at the millimeter level. It can also be used to distinguish between soft and hard materials.

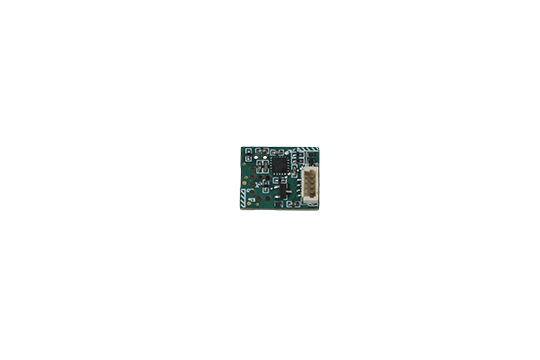

Ultrasonic Sensor US5C-803L
Description
Features
Millimeter-level distance measurement error, excellent distance measurement stability, low power consumption, and long service life.
It can identify soft and hard materials and can output via a serial port.
The detectable distance range is 10 mm to 60 mm.
Application
Distance Measurement
Proximity Switch
Flow Measurement
Material Identification
Specifications
| Program | Data | Unit | Note |
| Frequency | 100 | Hz | |
| Range | 10~60 | mm | |
| Working Voltage (DC) | 3.3±0.1 | V | Low voltage can affect the ranging performance, while high voltage can damage the equipment. |
| Voltage Ripple | ≤90 | mV | High ripple can affect the ranging performance. |
| Working Current | ≤50 | mA | |
| Working Temperature Range | -10~50 | ℃ | Operation in high-humidity condensation environments is not permitted. |
