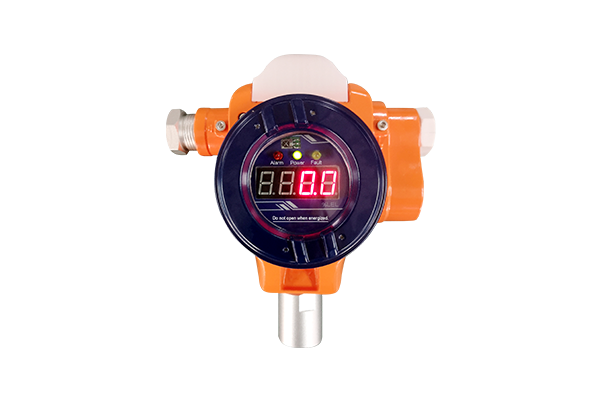

CXF Standalone Flammable Gas Detector

Compact structure, easy to install

Low cost

Explosive proof

Stable and reliable

Sensor type: Catalytic sensor

Detection range: 0-100%LEL

Application area: Indoor environment

Download

Description

CXF is a fixed flammable gas detector for industrial and commercial purposes, which is a stand-alone detector. The detector is mainly used in small restaurants, shopping malls, underground integrated pipe corridors and other environments where gas may leak. When the gas concentration in the environment exceeds the set concentration, it will alarm through the indicator light and buzzer, and drive the solenoid valve at the same time, fans and other equipment to protect the personal and property safety of users.

Features

Compact structure, easy to install

Low cost

Explosive proof

Stable and reliable

Convenient operation and maintenance

Flexible wiring

Application

Mainly used in small restaurants, shopping malls, underground integrated pipe corridors and other environments where flammable gas may leak.

Specifications

Sensor type Catalytic sensor
Sensor lifespan 3 years
Detection range 0-100%LEL
Sampling method Diffuse naturally
Preset low alarm 20%LEL
Preset high alarm 50%LEL
Application area Indoor environment
Power supply AC220V±44V
Resolution 1%LEL
Consumption ≤3W
Output 2 dry relays (3A@DC30V)
Alarm error ±3%LEL
Working method Continuous monitoring
Response time T90≤20s (CH4)
Operation By IR remote controller
Indication LED indicators
Ex grade Ex d IIC T6 Gb
Display LCD screen
IP class IP66
Working temp -10-55℃
Housing material Aluminium alloy
Humidity ≤95%RH
Dimension 168.4×193.4×82.1mm
Ambient pressure 88KPa to 106KPa
Weight About 1.2kg
Cable entry NPG3/4
