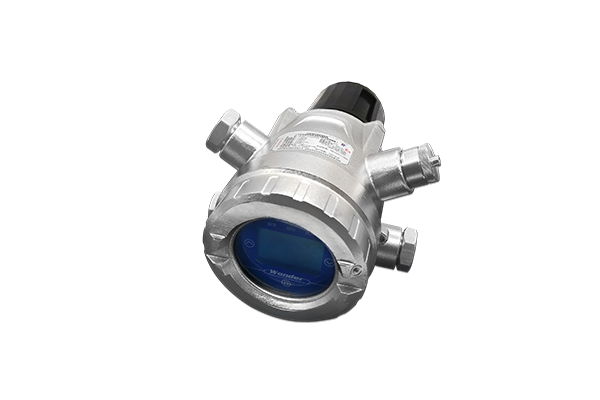

GTYQ-WD6200IRII Fixed Gas Detector

Double beam infrared technology, good stability

High accuracy, longer lifespan

4-20mA / Hart signal output

Measuring gas: CH4, C3H8, C4H10

Measuring range: 0-100%LEL

Measuring accuracy: ±3%LEL

Sensor life: ≥5 years

Download

Description

GTYQ-WD6200IRII Fixed Gas Detector is designed for detecting flammable gas. It features a double beam IR sensor that effectively reduce the zero drift to the minimum, and extends the maintenance intervals. The detector enjoys better gas selectivity, stability, longer life span, and wider application over detector with regular IR sensor. It shows not only the concentration of gas but also diagnostic result of the unit itself through the LCD screen and can be connected to the control panel with a standard 4-20mA analog communication.

Features

Double beam infrared technology, good stability

High accuracy, longer lifespan

4-20mA / Hart signal output

2 relay output for gas leak alarm and fault alert

LCD display, easy to read

Calibration indication and overdue indication

Magnetic bar and IR remote for setting, easy operation

Special installation accessories, easy installation

Smart sensor module design, easy maintenance

Sensor with heating function, excellent moisture and heat resistance

Optional Bluetooth communications function

Support remote upgrade

Application

Petroleum and petrochemical industry refineries, LPG/LNG tanking plants, gas energy industry, gas plants, offshore oil/gas platforms, etc.

Specifications

Measuring gas CH4, C3H8, C4H10
Measuring range 0-100%LEL
Measuring accuracy ±3%LEL
Sensor life ≥5 years
Measuring type Diffuse naturally
Response time ≤30s
Signal output 4-20mA / Hart
Alarm output signal 2 programmable relays
Cable / distance 1.5 MM2, 3 wire, shielded,1000m (maximum)
Conduit connection NPT3/4
Mounting type Wall mounted
Working temperature -40℃~+70℃
Working humidity ≤95%RH (no condensation)
Operation voltage DC24V±25%
Consumption ≤6.5W
Ingress Protection IP66 / IP67
Explosive proof Ex d IIC T6 Gb
Housing material 316L
Dimension and weight 243×158×127mm, about 5.2kg
