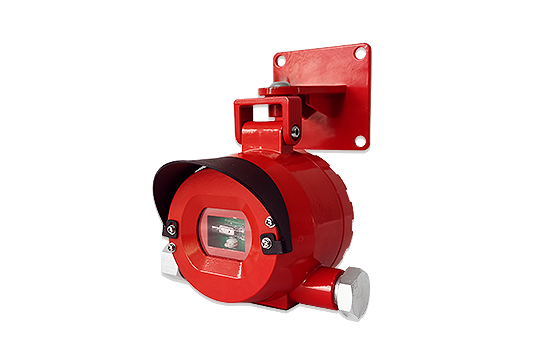

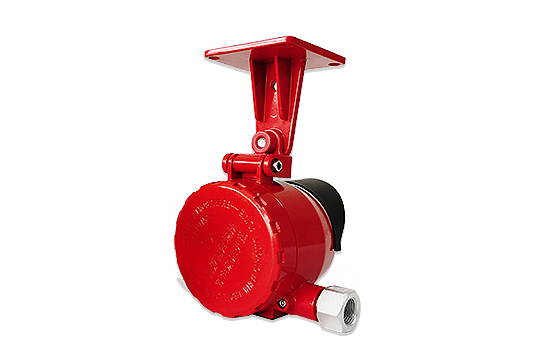

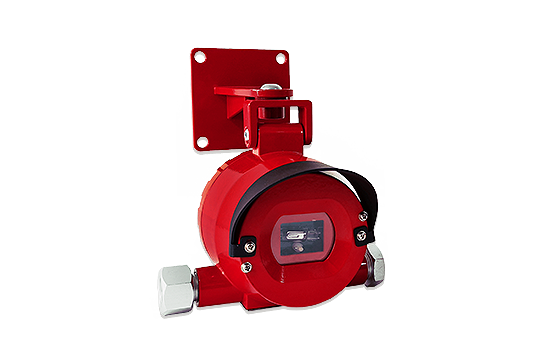

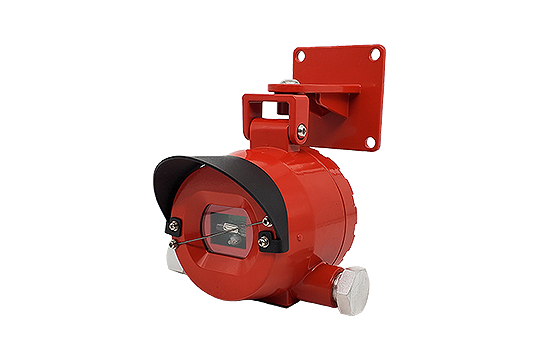

FD10-UV Ultraviolet Flame Detector

Detection object: Flame

Response spectrum range: 185~260nm

The longest detection distance can reach 30 meters

Multi-level sensitivity settings to meet the needs of different occasions

Download

Description

FD10-UV ultraviolet flame detector is a new type of intelligent fire detection equipment. The detector adopts advanced ultraviolet detection technology. By using solar-blind band of ultraviolet, the detector can be used to suppress the interference of sunlight, thus achieving the rapid response and accurate identification of the flame signal.

Features

Using high-speed, low-consumption and high-performance 32-bit data processing chip

Excellent resistance to radio frequency and electromagnetic interference

Perfect patent algorithm, fast response, high stability, strong anti-false alarm ability

The longest detection distance can reach 30 meters

Multi-level sensitivity settings to meet the needs of different occasions

Magnetic bar adjusts sensitivity, no need opening the cover on site

Explosion-proof design, suitable for hazardous areas in many types of industrial sites

Application

Specifications

Response spectrum range 185~260nm
Detection object Flame
Detection method
Real-time sampling of optical path
Display method LED lights
Status indication Green LED flashes to indicate normal operation (the number of flashes every 3 seconds represents the sensitivity level) Red LED always lights to indicate an alarm
Operation method Magnetic bar to adjust sensitivity (4 levels totally)
Signal output
4-20mA output
2 relays for fault and alarm (free contact)
Response time ≤5s
Ex grade Ex d IIC T6 Gb / Ex tD A21
Ingress protection IP66
Supply voltage DC24V±6V
Working current ≤30mA (DC23V)
Longest detection distance 30 meters, 0.3m×0.3m N-heptane fire
Field of view 120°
Weight 1.5±0.2kg
Installation method Wall mounted or lifting or holding-pipe
Cable entry interface NPT1/2, default transfer to G1/2 (internal thread)
Housing material Copper-free cast aluminum (epoxy resin on the surface)
Environment temp -20℃~+60℃
Environment humidity ≤95%RH (no condensation)
