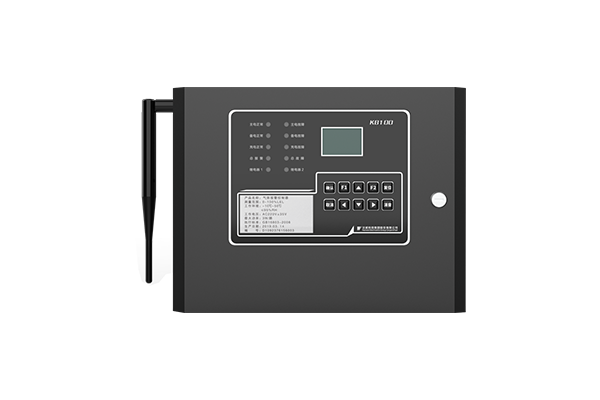

KB100 Gas Control Panel

Compact and economical control panel

LCD man-machine interface, status indication is clearly visible

Consumption: ≤20W

Communications signal: RS485 Power BUS

Loop capacity: 4pcs of gas detectors

Voltage output to detector: DC 24V±6V

Download

Description

KB100 is our new generation of small-point gas alarm control panel. It can connect up to 4 digital gas detectors. The man-machine interface adopts LCD and keyboard interactive operation, which makes the display clear and operation simple.

Features

Compact and economical control panel

LCD man-machine interface, status indication is clearly visible

New generation RS485 Bus signal communications

Data upload function

Application

For industrial gas monitoring use with RS485 Power Bus.

Specifications

Power supply Main: AC 220V±33V, 50Hz±5Hz
Battery backup: DC 24V±3V
Consumption ≤20W
Communications signal RS485 Power BUS
Loop capacity 4pcs of gas detectors
Voltage output to detector DC 24V±6V
Data upload RS485 (support MODBUS protocol)
Relay output 2 relays (free contact, capacity ≤5A)
Ex grade Not explosive proof
Ingress protection IP54
Ambient temperature 0℃- 40℃
Humidity ≤95%RH
Indication method LCD screen and LED indicators
Alarming method Audible: 65-100dB @ 1m
Visual LED indicators
Dimension 260mm × 200mm × 62mm
Weight ≤5kg
