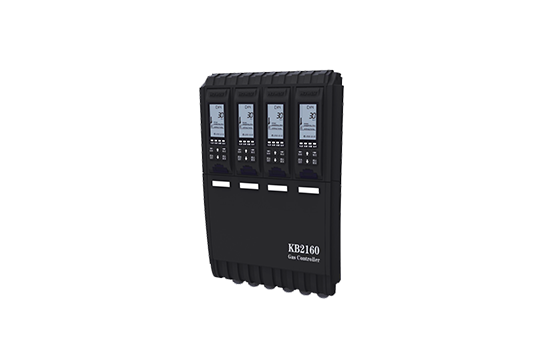

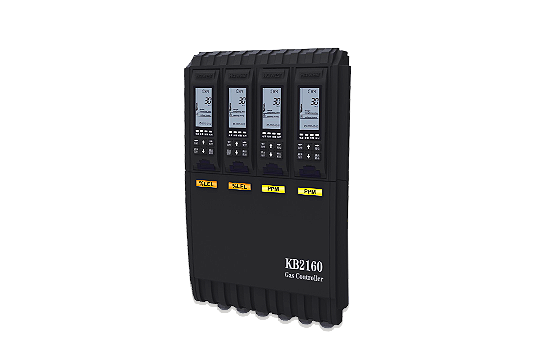

KB2160 Gas Control Panel

KB2160 Gas Control Panel

4~20mA signal connection

3 passive relay output for each channel

LCD display

Audible and visual alarm

Audible alarm: 65dB~115dB @1m

Approval: CE

Download

Description

KB2160 gas control panel is designed for industrial use with 4~20mA communication signal to integrate all the gas detectors in different sites, to monitor the gas concentration continuously and conveniently.

Features

4~20mA signal connection

3 passive relay output for each channel

LCD display

Auto-search after power on

Audible and visual alarm

Application

Hospital, School, Parking lot, Hotel kitchen etc. commercial places. LNG/LPG cylinder factory, Gas station, Cooling plant, Water treatment, Refinery, Metallurgy, Chemical plant, Brewery, Pharmacy, etc. Industries.

Specifications

Power AC220V±15%, 50Hz±1%
Consumption ≤10W
Voltage output DC24V±25%
Working temperature -10℃~+50℃
Working humidity ≤95%RH (no condensation)
Alarm method Visual and audible
Audible alarm 65dB~115dB @1m
Ingress protection IP54
Relay 3 passive replay output for each channel
Relay capacitance 2A/AC220V
Cable required RVVP3×1.5mm2, RVVP4×1.5mm2
Transmission distance ≤1000m
Installation type Wall mounted, Cabinet type
Detector quantity Wall mounted type: 8 channels maximum

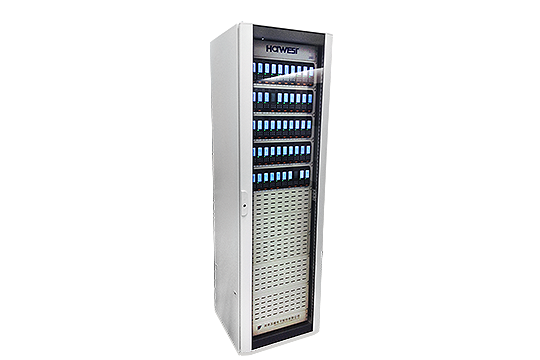

Cabinet type: 80 channels maximum
Approval CE
