Home > Product > Industrial Gas Detection > Gas Leak Detector >

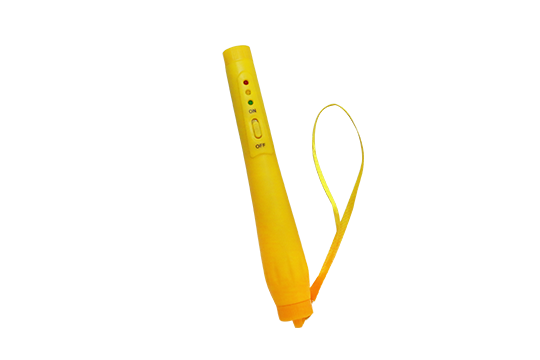

BX166 Pen-type Gas Leak Detector

Auto zero calibration

Measuring gas: Natural gas (CH4), LPG (C3H8)

Measuring range: 0-100%LEL

Operating voltage: 2pcs of 1.5V AA Alkaline batteries

Alarm method: Visual and audible alarm

Download

Description

BX166 is a personal-use flammable gas leak detector. Detection is in quality, but not in quantity. When the gas concentration exceeds the preset alarm value, it will give audible and visual alarming signals to inform the user.BX166 is a personal-use flammable gas leak detector. Detection is in quality, but not in quantity. When the gas concentration exceeds the preset alarm value, it will give audible and visual alarming signals to inform the user.

Features

Auto zero calibration

Fast response and resume

Easy to operate

Variety sound for different status

With small zero drift and large range of operating temperature

Application

To check if there is any leakage on the LPG gas cylinders or natural gas pipelines at home.

Specifications

Measuring gas Natural gas (CH4), LPG (C3H8)
Measuring range 0-100%LEL
Operating voltage 2pcs of 1.5V AA Alkaline batteries
Operating current 139mA
Working time Not less than 3 hours
Response time <5s
Preset alarm points 20%LEL and 50%LEL
Alarm method Visual and audible alarm
Sound  ≥65dB @ 1 meter
Indication method Green LED-Normal, Yellow LED-Fault, Red LED-Alarm
