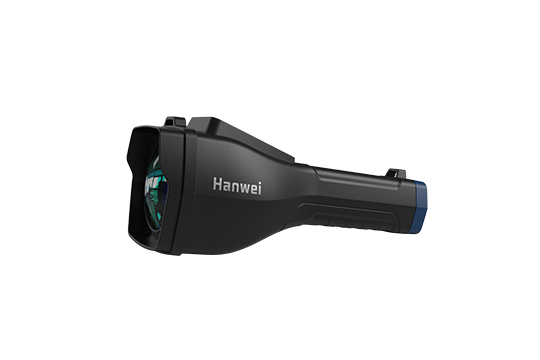

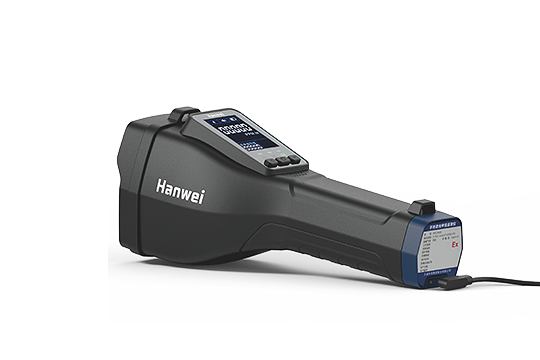

HRLD600 Handheld Laser Methane Detector

HRLD600 Handheld Laser Methane Detector

Adopts TDLAS detection principle

Detection distance can be more than 150 meters

Color LCD screen display of gas concentration data

Sensitivity: 5ppm.m

Response time: T90<0.05s

Ingress protection: IP66

Download

Description

HRLD600 handheld laser methane detector is an advanced gas patrol equipment newly developed by our company. Adopting the most advanced laser technology in the world at present, the non-contact measurement can realize remote detection of gas leakage, where the detection personnel cannot reach, and can accurately locate and quickly find the leakage source. With the advantages of small size, light weight, high sensitivity, quick response and good selection, it can be widely used in the city gas transmission and distribution pipeline, oil, petrochemical industry refineries, chemical plants, metallurgical industry, power industry and other places that may produce gas leakage.

Features

Adopts TDLAS detection principle

Detection distance can be more than 150 meters

Fast response, the alarm will be sent out on the leakage point, no alarm delay

Good selectivity, only response to Methane, effectively avoid the interference of water vapor, automobile exhaust and other gas

Color LCD screen display of gas concentration data

With real-time waveform and digital display functions, optional ranges of ppm.m, LEL.m and VOL.m

Low power consumption design allows continuous monitoring of objects that can be penetrated by light, such as ordinary glass, for a long time

Data can be uploaded to the remote monitoring platform via Bluetooth

Application

It can be widely used in the city gas transmission and distribution pipeline, oil, petrochemical industry refineries, chemical plants, metallurgical industry, power industry and other places that may produce gas leakage.

Specifications

Measuring gas Methane (CH4)
Measuring range 0-100,000ppm.m
Alarm type Visible, audible
Response time T90<0.05s
Sensitivity 5ppm.m
Sensor life 10 years
Measuring type Laser beam
Alarm type Visible, audible
Audible alarm 85dB @1m
Battery voltage DC3.7V
Working temperature -20℃~+50℃
Working humidity <99%RH (no condensation)
Accessories Belt, screen cover
Option Telescope sight
Working time 8 hours
Explosive-proof degree Ex ib IIB T4 Gb
Ingress Protection IP66
Dimension 220mm×80mm×90mm
Weight About 600g
