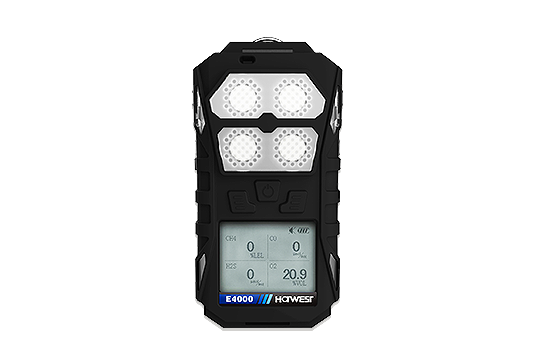

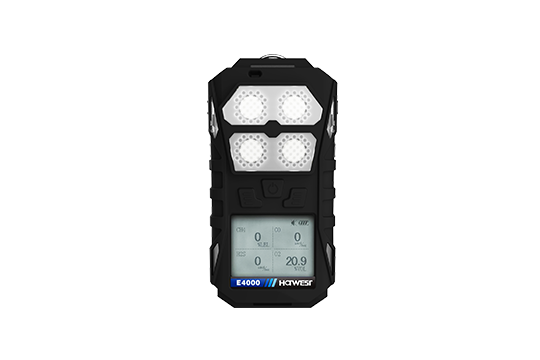

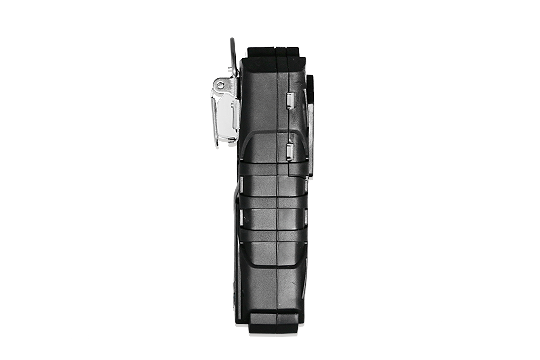

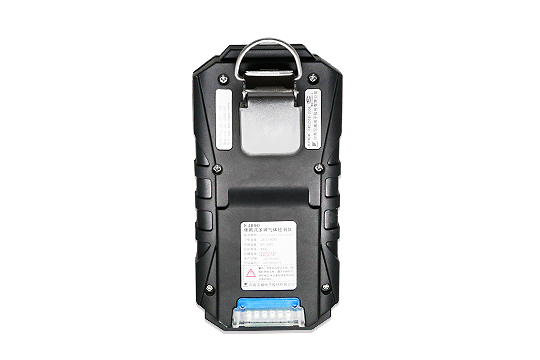

E4000 Portable Multi-gas Detector

E4000 Portable Multi-gas Detector

Interchangeable smart sensor module

MOS, catalytic, electrochemical, infrared, PID sensors selectable

Built-in sampling pump (optional)

GPS, GPRS and man down function (optional)

Measuring gas: O2, CO, H2S, Combustible

Ingress protection: IP66

Download

Description

E4000 is a united gas detector measuring maximum four (4) gases, to protect the disasters caused by the O2 deficiency, toxic gas poisoning and combustible gas explosion. It measures continuously maximum four gases of combustible gas, O2 and toxic gases, and displays their concentrations. Once the risk occurs, it also raises the alarm (visual, audible and vibrative). By adopting interchangeable smart sensor module, it can be made for detecting 2 gases, 3 gases and 4 gases.

Features

Interchangeable smart sensor module

Intrinsically safe

MOS, catalytic, electrochemical, infrared, PID sensors selectable

Built-in sampling pump (optional)

Visual, audible and vibrative alarm

Adjustable alarm levels and span calibration value

STEL and TWA alarm for toxic gases

Password management

Real-time clock

Self-test after power on

Self-diagonstic and self-correction function

GPS, GPRS and man down function (optional)

Application

Steelworks, petrochemical plant, oil industry, shipbuilding yard, sewage treatment plant, mine, power supply works, confined spaces etc.

Specifications

Measuring gas O2 CO H2S Combustible
Measuring range 0-30%VOL 0-1000ppm 0-100ppm 0-100%LEL
Sensor type Electrochemical Electrochemical Electrochemical Catalytic
Measuring type Diffuse naturally (pump sampling if pump is selected)
Response time T90<30s
Display LCD screen
Audible ≥85dB at 1m
Alarm method Visual, audible and vibrative signals
Battery DC3.7V 6600mAh Lithium battery
Operating life 8 to 300h (depends on the gas integration)
Event log 100,000 events
Working temperature Toxic gases: -20℃~50℃   Combustible: -40℃~70℃
Working humidity    <95%RH (no condensation)
Housing Rubber enclosure
Standard accessories Operation manual, calibration cap, charger, screwdriver, USB cable
Dimension & weight 147×76×37mm, about 350g
Ex grade Ex ia IIC T4 Gb
Ingress protection IP66
