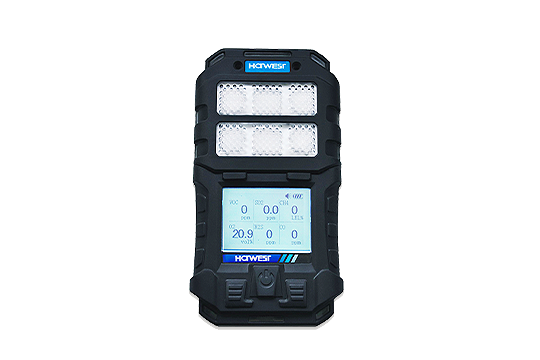

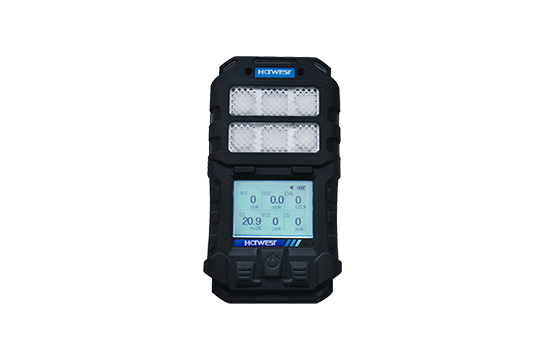

E6000 is a united gas detector measuring maximum six (6) gases, to protect the disasters caused by the O2 deficiency, toxic gas poisoning and combustible gas explosion. It measures continuously maximum six gases of combustible gas, O2 and toxic gases, and displays their concentrations. Once the risk occurs, it also raises the alarm (visual, audible and vibrative). By adopting interchangeable smart sensor module, it can be made for detecting 5 gases and 6 gases.

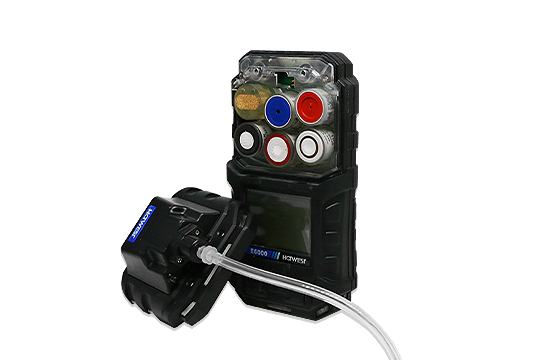

Interchangeable smart sensor module
MOS, catalytic, electrochemical, infrared, PID sensors selectable

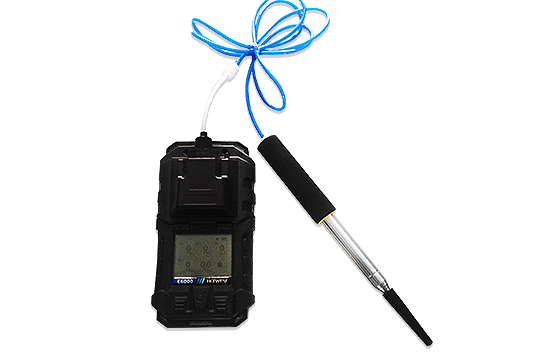

Built-in sampling pump (optional)
Visual, audible and vibrative alarm
Adjustable alarm levels and span calibration value
STEL and TWA alarm for toxic gases
Self-test after power on
Self-diagonstic and self-correction function
GPS, GPRS and man down function (optional)
Steelworks, petrochemical plant, oil industry, shipbuilding yard, sewage treatment plant, mine, power supply works, confined spaces etc.
|Measuring type||Diffuse naturally (pump sampling if pump is selected)|
|Audible||≥80dB at 1m|
|Alarm method||Visual, audible and vibrative signals|
|Battery||DC3.7V 6600mAh Lithium battery|
|Operating life||8 to 300h (depends on the gas integration)|
|Event log||100,000 events|
|Working temperature||Toxic gases: -20℃～50℃ Combustible: -40℃～70℃|
|Working humidity||<95%RH (no condensation)|
|Standard accessories||Operation manual, calibration cap, charger, screwdriver, USB cable|
|Dimension & weight||168×91×45mm, about 500g|
|Ex grade||Ex ia IIC T4 Gb|
