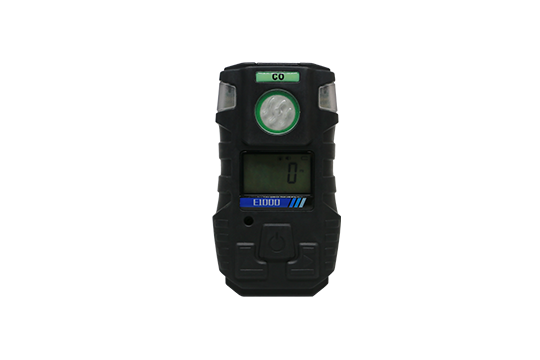

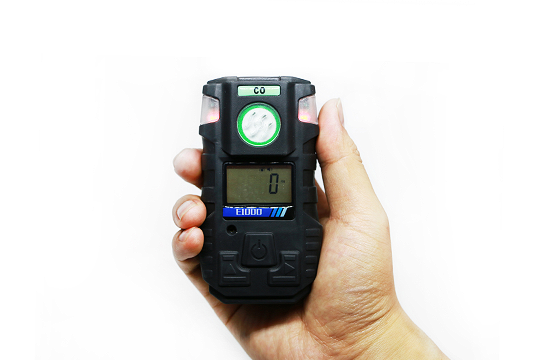

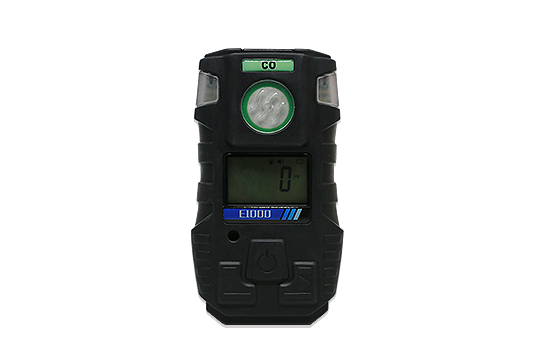

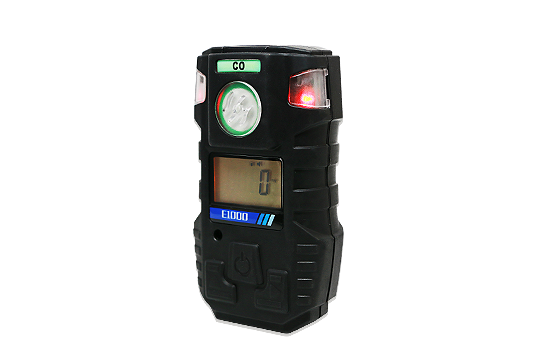

E1000 Portable Single Gas Detector

Interchangeable smart sensor module

Visual, audible and vibrative alarm

Self-test after power on

Measuring gas: O2, CO, H2S, Combustible

Battery: DC3.7V 1800mAh Lithium battery

Ingress protection: IP66

Download

Description

E1000 is a rechargeable single gas detector and is suitable for monitoring the gas concentration of flammable gas, O2 and toxic gases in the environment. It measures a gas continuously and displays its concentration and raises an alarm when a risk occurs. By adopting smart sensor module, it’s easy for replacement and maintenance by the user himself.

Features

Interchangeable smart sensor module

Intrinsically safe

Visual, audible and vibrative alarm

Adjustable alarm levels and span calibration value

STEL and TWA alarm for toxic gases

Password management

Real-time clock

Self-test after power on

Self-diagonstic and self-correction function

Application

Steelworks, petrochemical plant, oil industry, shipbuilding yard, sewage treatment plant, mine, power supply works etc.

Specifications

Measuring gas O2 CO H2S Combustible
Measuring range 0-30%VOL 0-1000ppm 0-100ppm 0-100%LEL
Sensor type Electrochemical Electrochemical Electrochemical Catalytic
Measuring type Diffuse naturally
Response time T90<30s
Display LCD screen
Audible ≥85dB at 1m
Alarm method Visual, audible and vibrative signals
Battery DC3.7V 1800mAh Lithium battery
Charging time 4-6h
Operating life Toxic gases: ≥300h per charge   Combustible: ≥8h per charge
Event log 10000 events
Working temperature Toxic gases: -20℃~50℃   Combustible: -40℃~70℃
Working humidity    <95%RH (no condensation)
Housing Rubber enclosure
Standard accessories Operation manual, calibration cap, charger, screwdriver
Optional function Data upload through USB cable
Dimension & weight 108×61×36mm, about 190g
Ex grade Ex ib IIC T4
Ingress protection IP66
