E110 is an intrinsically safe portable gas detector that can continuously detect the concentration of combustible gases, toxic gases, or oxygen. It is suitable for explosion-proof, toxic gas leakage rescue, underground pipelines and other places, and can effectively ensure that the life safety of workers is not violated, and production equipment is not damaged.

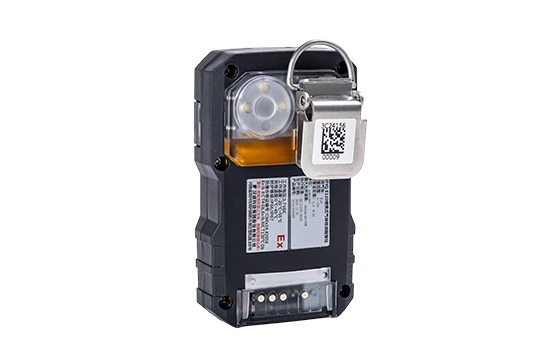

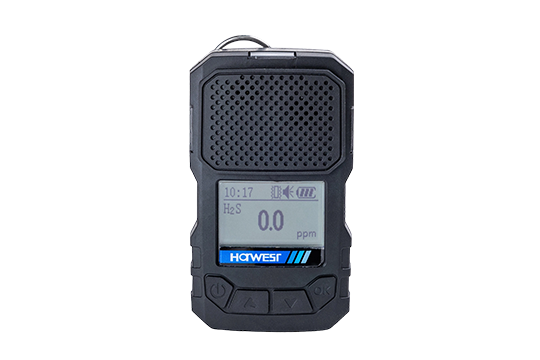

BTYQ-E110 Portable Single Gas Detector
Description
Features
ATEX and IECEx approved
Advanced ultra-low power MCU
Ultra wide viewing-angle graphic LCD display
Self-check of combustible gas sensor fault
Battery low voltage alert
Real-time clock display
Automatic calibration function to reduce detection errors
Audible, visual, and vibration alarming signals
Multiple alarms of Low-alarm, High-alarm, TWA, STEL, over-range, and battery low voltage alerts
Capable of parameter settings, log storage, export, and other functions (optional)
Self-check function after power on (self diagnosis and repair)
Password management to avoid wrong operation
Application
Petroleum, chemical industry, metallurgy, mines or underground pipelines, tunnels etc.
Specifications
| Detection method | Diffuse naturally |
| Sensor type | Electrochemical (include Toxic Gas Sensor and O2 Sensor),NDIR Sensor,PID Sensor |
| Display deviation |
CO: Absolute deviation: ±5 ppm Relative deviation: ±10% H2S: Absolute deviation: ±2 ppm Relative deviation: ±10% O2: ±2%F.S Others: ±5%F.S |
| Indication method |
LCD screen display of real-time data and system status; Visual/audible/vibration indication of alarm, fault and low voltage |
| Comm. method | USB cable (optional) |
| Working environment |
Temperature: -20℃～+55℃ Humidity: ＜95%RH (no condensation) Air pressure: 90kPa～110kPa |
| Power source | DC 3.7V(604050) rechargeable Lithium |
| Working time | ≥8h (continuous working after full charge; @20℃ no alarming state) |
| Charging environment |
Temperature: 0℃～45℃ Humidity: ＜95%RH (no condensation) Air pressure: 90kPa～110kPa |
| Sensor lifespan | 2 years |
| Ingress protection | IP66/IP67 |
| Ex-proof grade |
Ex ia op is IIC T4 Ga, when the senor is NDIR Sensor; Ex ia IIC T4 Ga, when the senor is not NDIR Sensor |
| Certificate |
IECEx CSA 25.0094X CSANe 25ATEX1234X |
| Dimension | 97 mm×53 mm×22.5 mm |
| Weight | About 115g |
| Featured functions | Parameter settings, log storage & export functions (optional) |
