The flexible pressure sensor is an artificial flexible bionic sensor based on high-sensitivity flexible nano functional materials to realize the sensing function of imitating human skin. It can sense small pressure or tactile signals. SF15 series Flexible pressure sensor is a new type of sensor using the flexible pressure sensing technology with independent intellectual property rights. Flexible nano functional materials with strong adhesion, bending resistance and high sensitivity are printed on the flexible and thin materials to realize the high sensitivity detection of pressure.

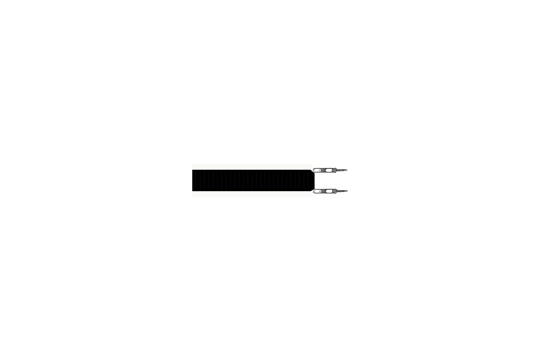

SF15 Series Flexible Pressure Sensor
Description
Features
Long life
High sensitivity
Light weight and bending resistance
Waterproof and pressure sensitive
Application
Smart wearable product
Medical Health
Consumer Electronics
Pressure perception
Consumer electronics
Human-computer interaction
Smart home
Specifications
| Size | Product size | |||
| Thickness | SF15-54 | SF15-130 | SF15-150 | SF15-600 |
| Range | 54mm | 130mm | 150mm | 600mm |
| Response point | 15mm | |||
| Durability | >1 million times | |||
| Initial resistance | >10MΩ (No load) | |||
| Test voltage | Typical value DC 3.3V | |||
| Response time | <1ms | |||
| Recovery time | <15ms | |||
| Working temperature | -20°C ~ 60°C | |||
| EMI | Not produced | |||
| ESD | Insensitivity | |||
