Wet-type pulse remote transmission water meter (hereinafter referred to as WPR water meter) is Hanwei’s self-developed remote meter for the actual needs of daily water consumption, which is convenient for remote meter reading and control. It adopts wireless communication to realize remote reading of the water meter, effectively avoiding the door-to-door meter reading by the Water company/Bureau. This product also has a valve control function ( optional ), which is convenient for the water company/bureau to control the water consumption of the pulse -type remote water meter, making remote meter reading and control more convenient and reliable, while saving manpower, material and financial resources. Effectively increased productivity.

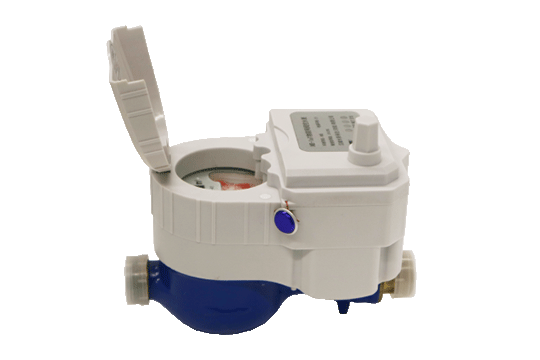

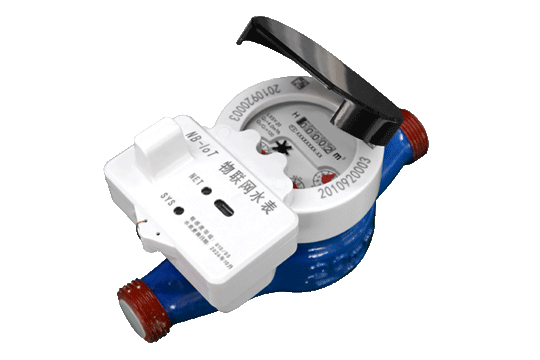

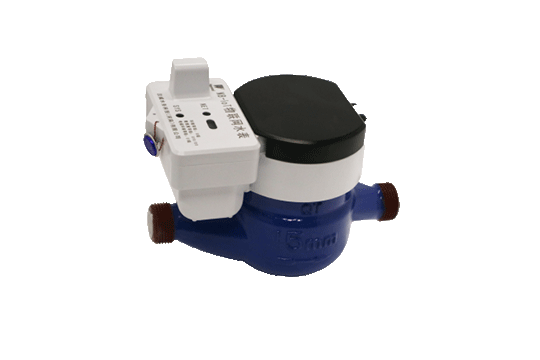

Wet-type Pulse Remote Transmission Water Meter
Description
Features
Pulse measurement method, the accuracy can reach 1L.
Various pulse metering modules can be : Hall sampling, reed switch sampling, magnetic-resistance sampling, non-magnetic sampling, etc.
Optional Material: ductile iron, cast copper, stainless steel, nylon, etc.
Battery-powered, low power consumption design，battery be used for more than 7 years.
Various communication type available: LoRa, LoRaWAN, NB-IoT, 4G.
External antenna/internal antenna optional.
Application
Residential & Commercial buildings
Old community renovations
Schools, urban and rural water supply
Urban road greening water
Farmland irrigation etc
Specifications
| Mechanical part | |||
| Parameter | unit | Value | |
| Nominal diameter (DN) | mm | 15 | 20 |
| Minimum flow (Q 1 ) | m3/h | 0.025 | 0.04 |
| Boundary Flow (Q 2 ) | m3/h | 0.04 | 0.06 |
| Common flow (Q 3 ) | m3/h | 2.5 | 4 |
| Overload flow (Q 4 ) | m3/h | 3.125 | 5 |
| Q 3 /Q 1 (R) | 100 | ||
| pressure loss | 0.063MPa | ||
| Pressure Level | MAP10, normal ≤ 1.0MPa, short time ≤ 1.6MPa | ||
| water temperature | Temperature: 0.1～+45℃ ( cold water ) | ||
| Electrical part | |||
| Working Power | 26500+1520 combined lithium battery | ||
| Working Current | Static current: < 15u A , wireless transmission working current: < 200 mA | ||
| Ambient Temperature | Temperature: -20 ℃～+45℃ , Humidity: 0～ 100 %RH | ||
| Degree Of Protection | IP68 | ||
| Valve Function | optional | ||
| Way Of Communication | LoRa, LoRaWAN, NB-IoT, 4G. | ||
| Receiver Sensitivity | -136dBm | ||
| Communication Protocal | " 188 Communication Protocol" or MODBUS protocol , and the protocol can be customized | ||
| Protection Mechanism | Short circuit protection , overvoltage protection, overcurrent protection | ||
